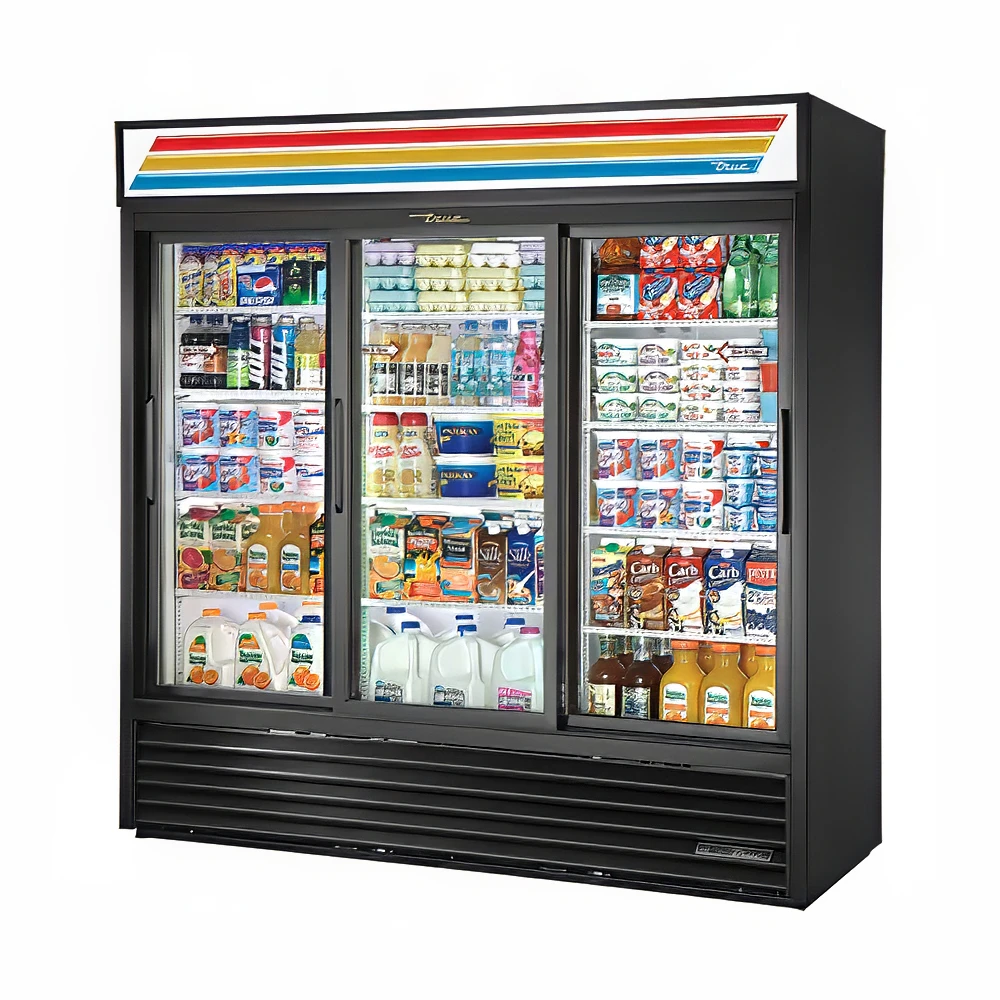

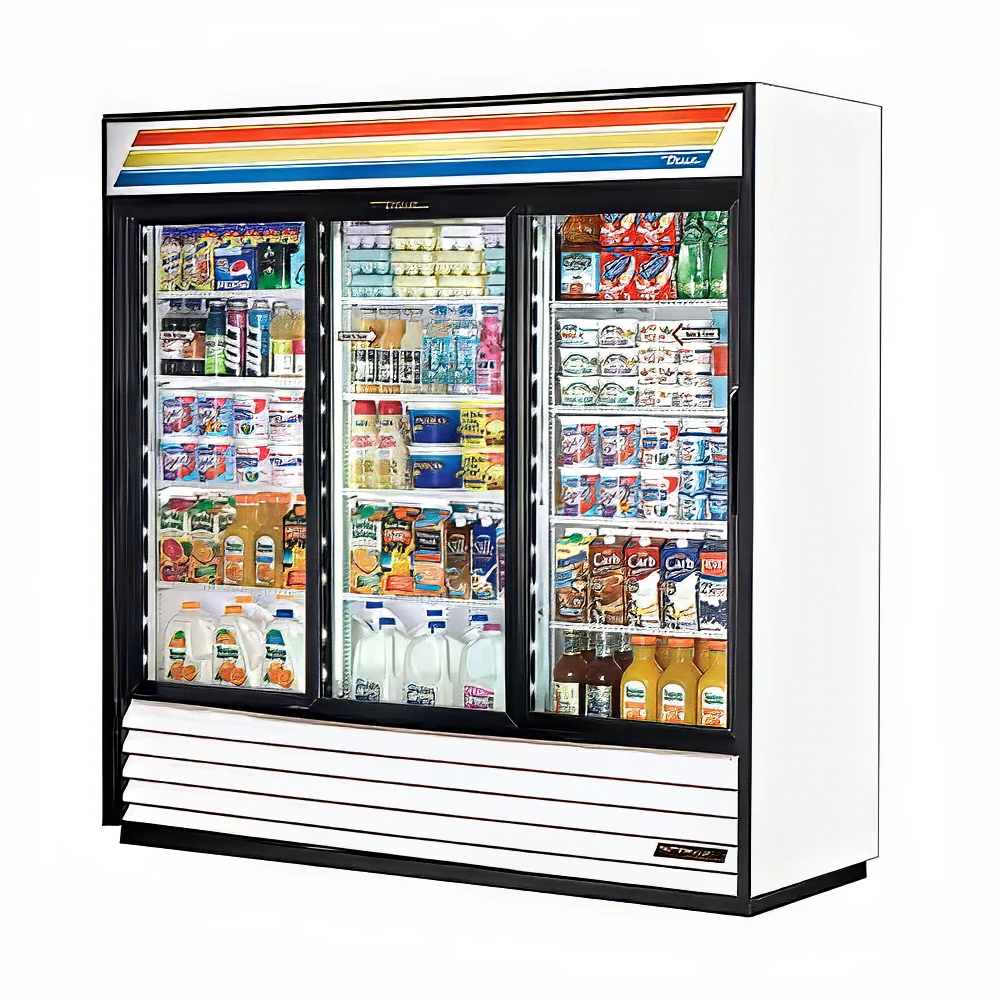

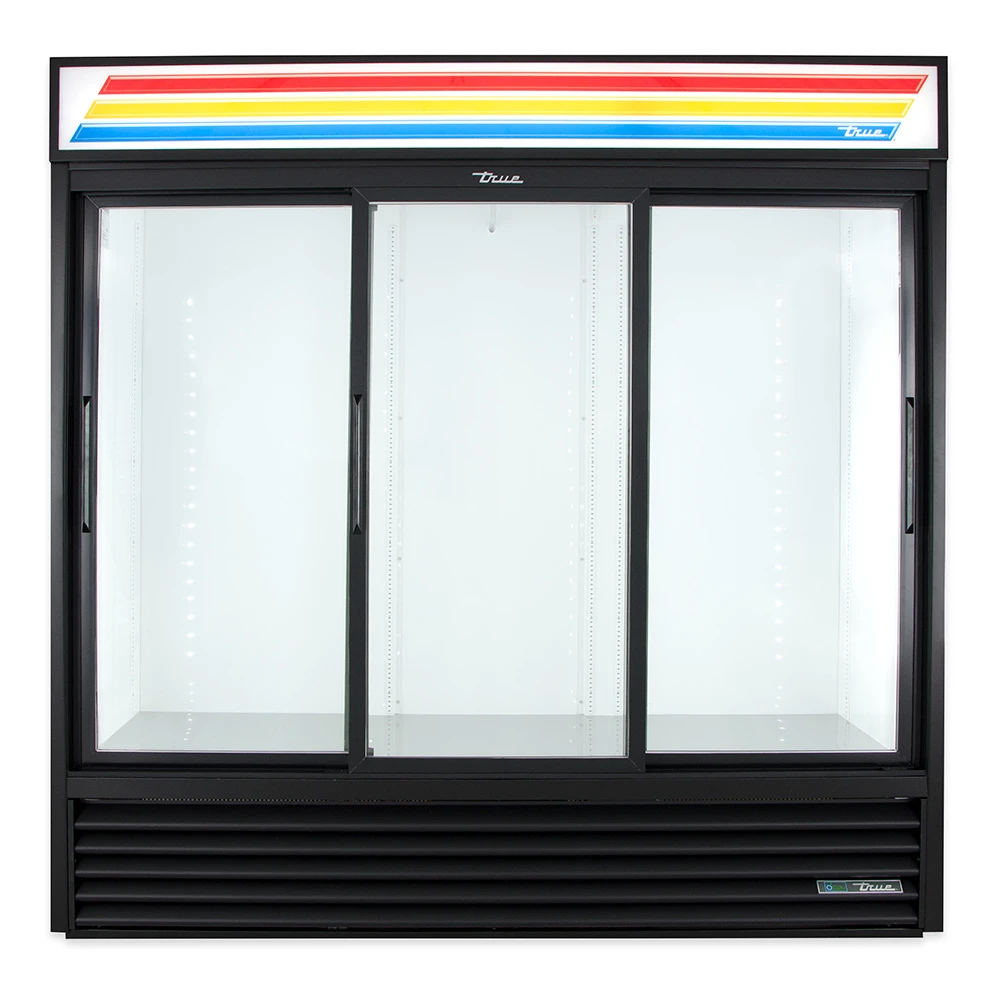

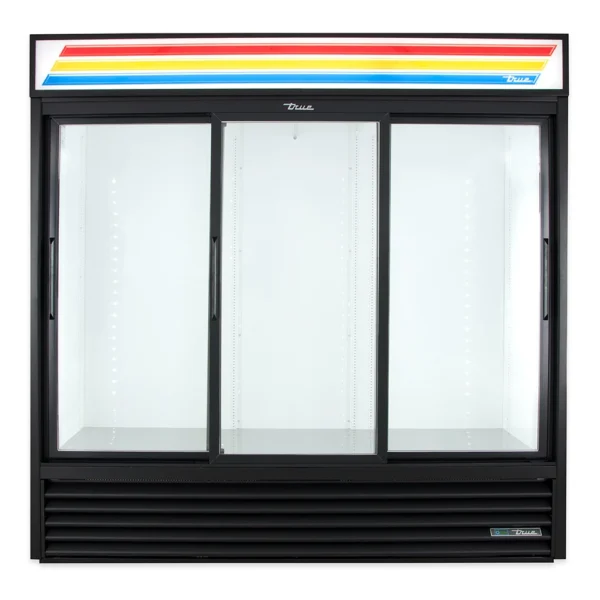

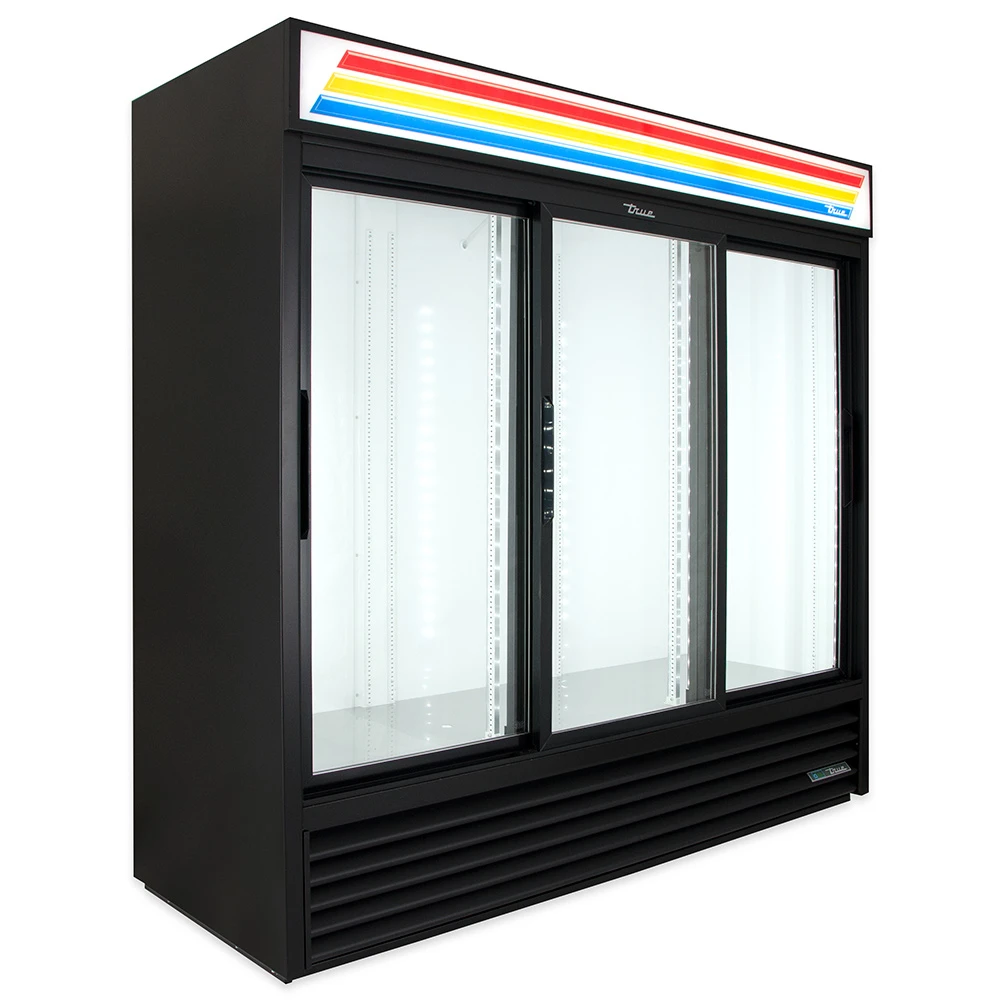

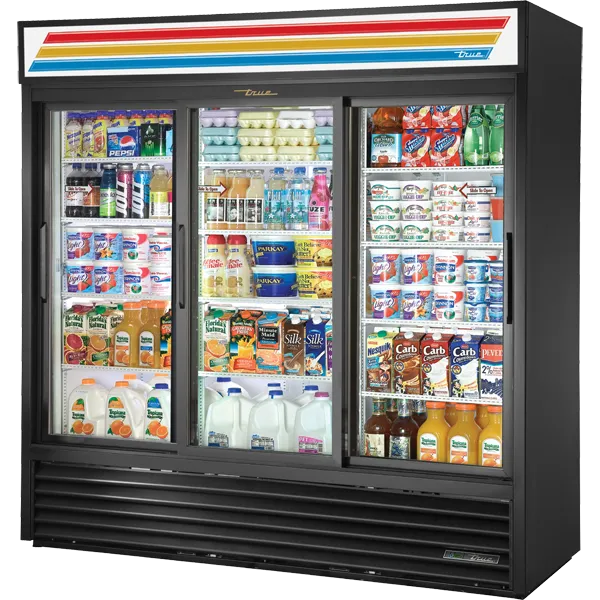

True GDM-69-HC-LD 78 1/8″ GDM Series Three Section Glass Door Merchandiser 3 Sliding Doors 115v

Description

The True GDM-69-HC-LD three-section glass door merchandiser is designed for high-volume retail environments that demand dependable refrigeration, clear product visibility, and long-term efficiency. With three glass doors and twelve adjustable shelves, this commercial merchandiser provides generous storage capacity for bottled and packaged products while keeping items easily accessible and well organized.

Built with a balanced, high-capacity refrigeration system, this unit delivers fast pull-down times and consistent temperature recovery to maintain safe holding conditions between 33°F and 38°F. The system operates using environmentally friendly R290 hydrocarbon refrigerant, helping reduce energy consumption while meeting modern sustainability standards. An oversized evaporator coil, paired with a high-horsepower compressor and large condenser, ensures reliable cooling performance even during peak business hours.

To support efficient operation and reduce maintenance demands, the reverse condensing fan motor automatically clears dust and debris from the condensing coil for 20 seconds each time the compressor starts. Keeping the coil clean improves airflow, lowers energy usage, and extends the overall lifespan of the unit when used alongside routine preventive maintenance.

The cabinet is constructed with a durable white powder-coated steel exterior that resists chipping and peeling, making it suitable for demanding commercial settings. Inside, the white aluminum liner and stainless steel floor provide strength and corrosion resistance while simplifying cleanup. A built-in floor drain allows quick washdowns, reducing downtime during routine cleaning.

For enhanced merchandising, bright LED interior lighting illuminates products across all three sections, while the bottom-mounted condensing unit raises the lower shelf to a no-stoop height for improved product visibility and customer reach. The three double-pane, thermally insulated glass doors are counterbalanced for smooth, self-closing operation, helping maintain internal temperatures and reduce energy loss.

---

Product Details

• Three-section refrigerated glass door merchandiser

• 12 PVC-coated wire shelves, adjustable in ½-inch increments

• 4 chrome-plated shelf clips per shelf

• Raised bottom shelf improves product visibility

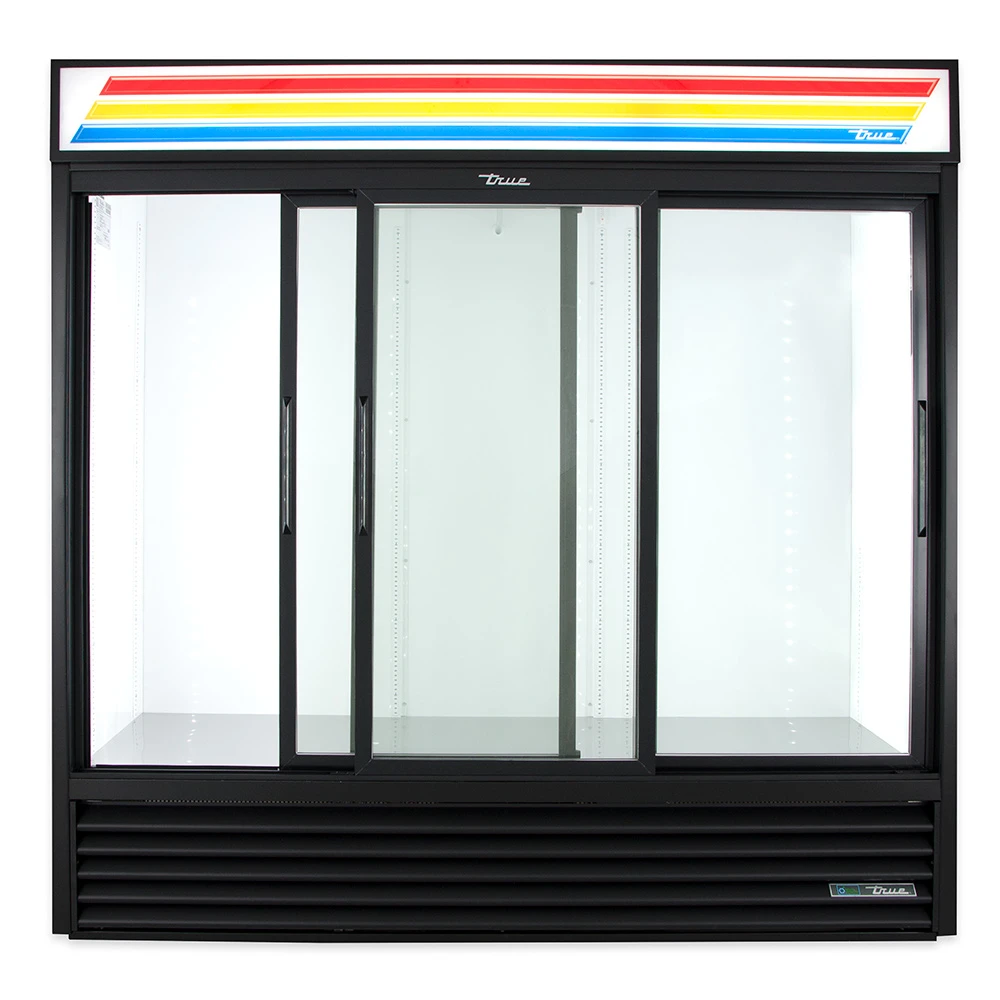

• Three double-pane, thermally insulated glass doors

• Counterbalanced, self-closing doors for energy efficiency

• 12-inch door handles for easy access

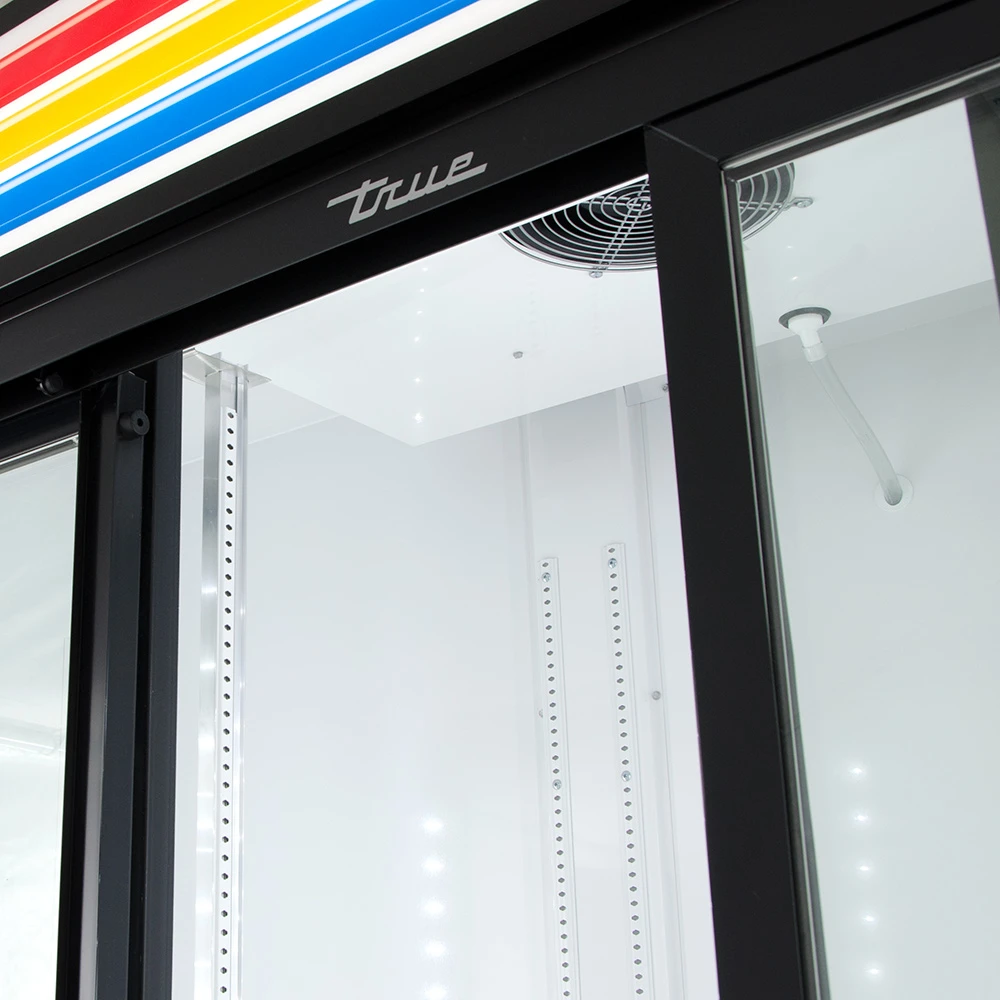

• LED interior lighting enhances product presentation

---

Refrigeration System

• Operating temperature range: 33–38°F

• Factory-engineered, self-contained capillary tube system

• Uses eco-friendly R290 hydrocarbon refrigerant

• Oversized evaporator coil for fast recovery and pull-down

• High-horsepower compressor and large condenser

• Reverse condensing fan motor clears debris from coil

• Epoxy-coated evaporator resists corrosion

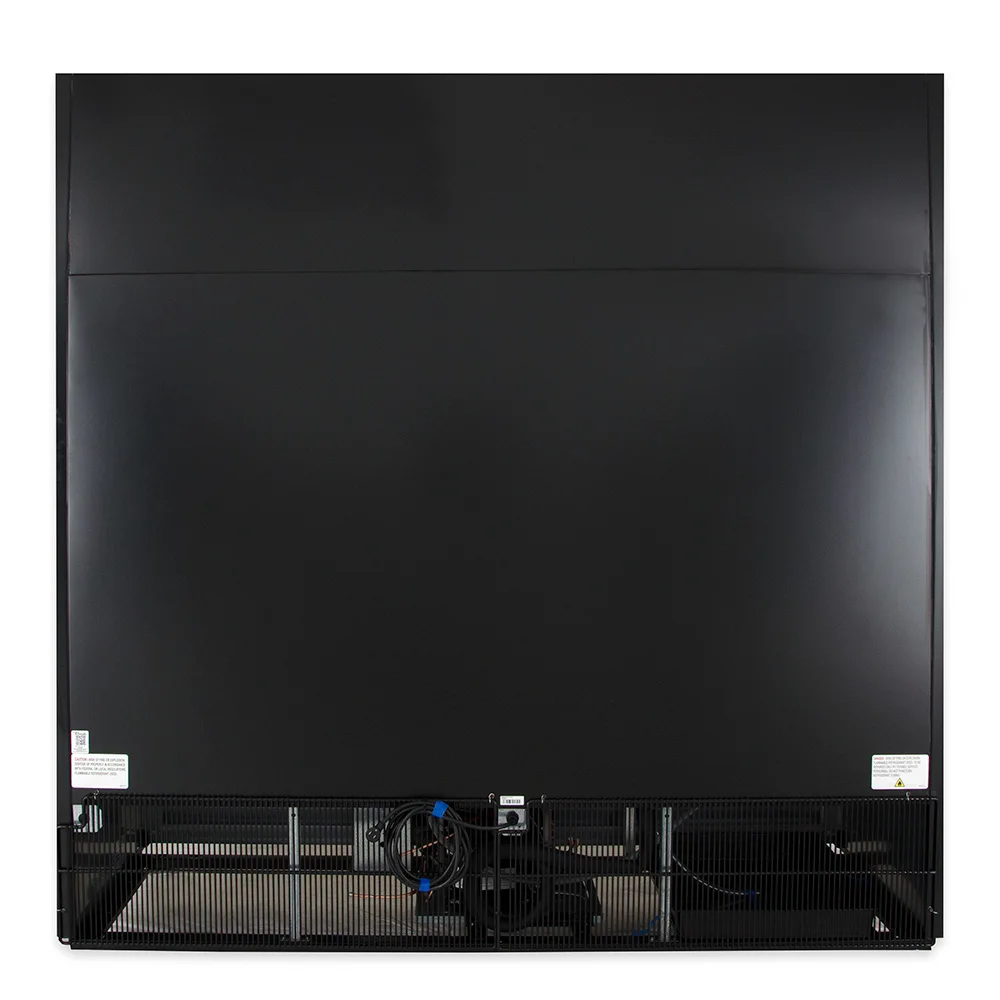

• Bottom-mounted condensing unit for easy maintenance access

---

Construction

• White powder-coated steel exterior resists peeling and chipping

• White aluminum interior liner for durability and brightness

• Stainless steel floor with built-in clean-out drain

• Foamed-in-place polyurethane insulation retains cold air and adds structural strength

• Adjustable leg levelers provide stability on uneven floors

---

Dimensions & Utilities

• Shelf size: 23 7⁄8 in. W × 20 9⁄16 in. D

• Overall dimensions: 78 1⁄8 in. W × 30 in. D × 78 5⁄8 in. H

• Electrical: 115V / 60Hz / 1 phase

• Amperage: 9.3 A

• Compressor: ½ HP

• Power cord: 9-ft cord with NEMA 5-15P plug
