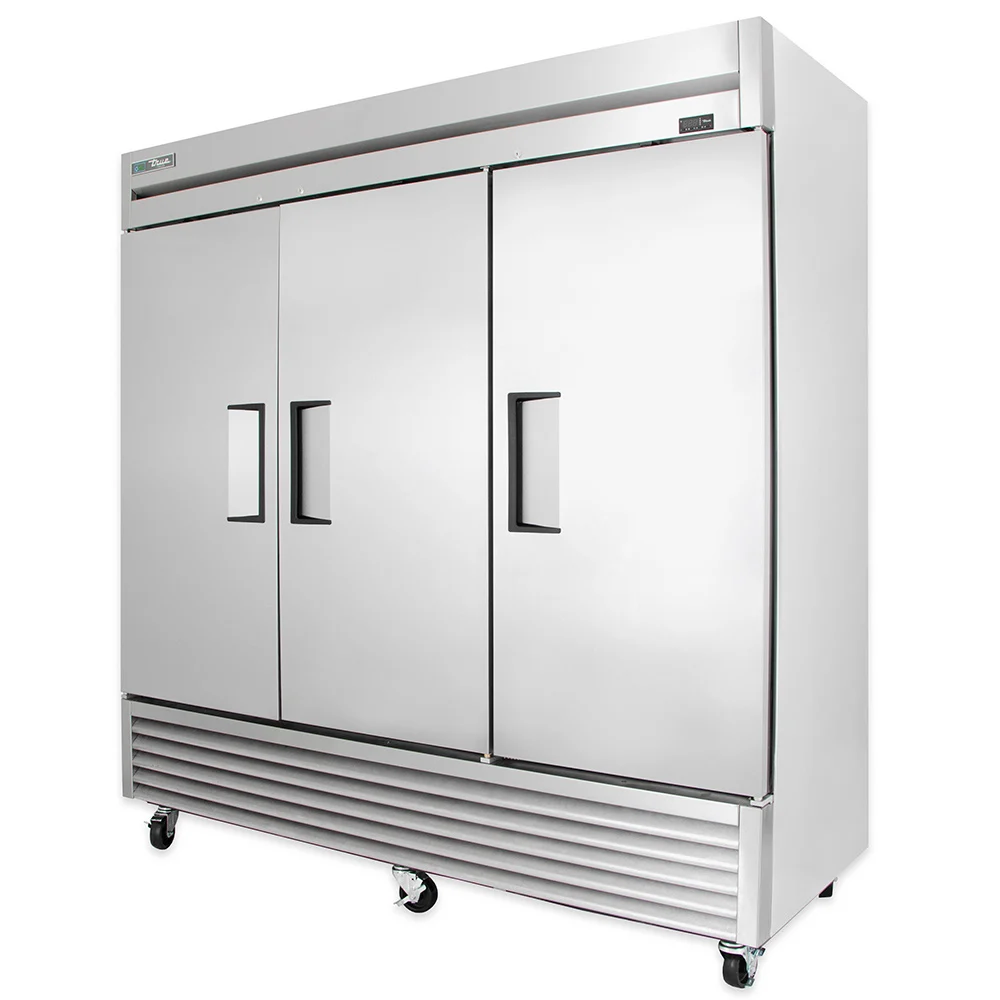

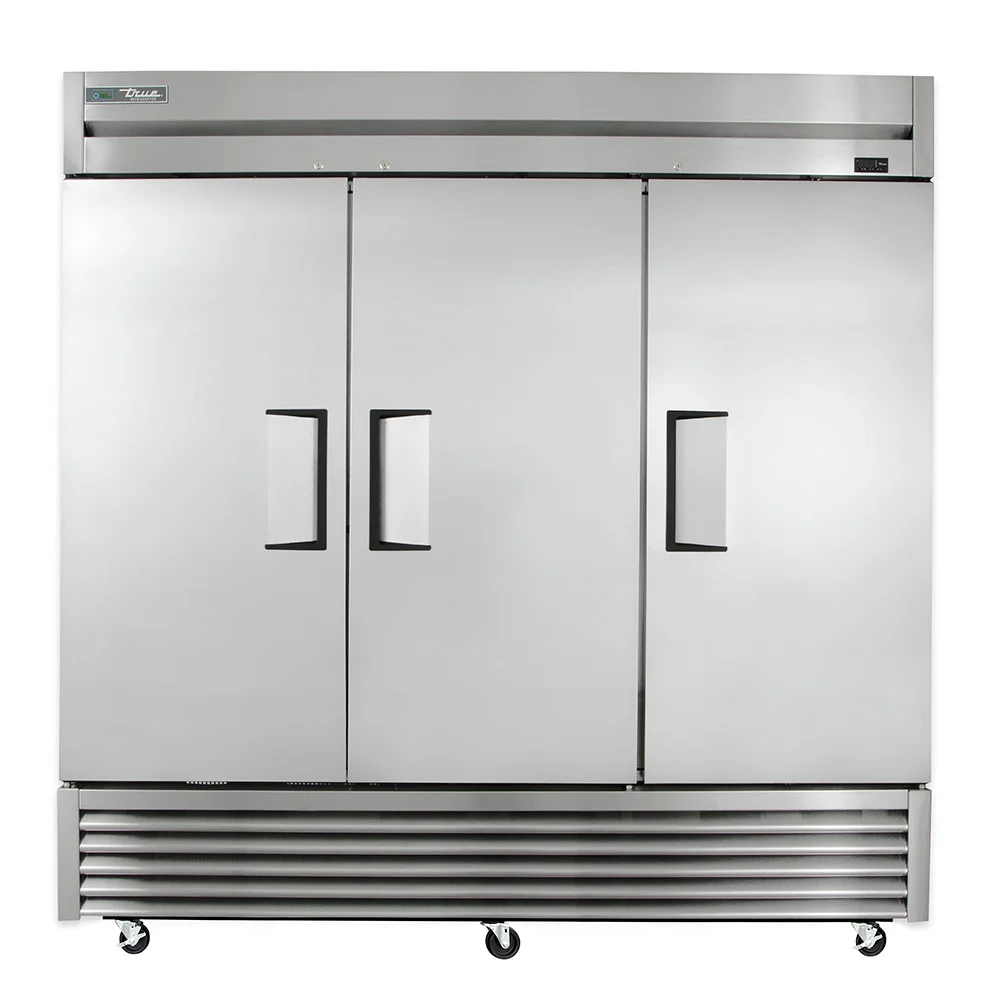

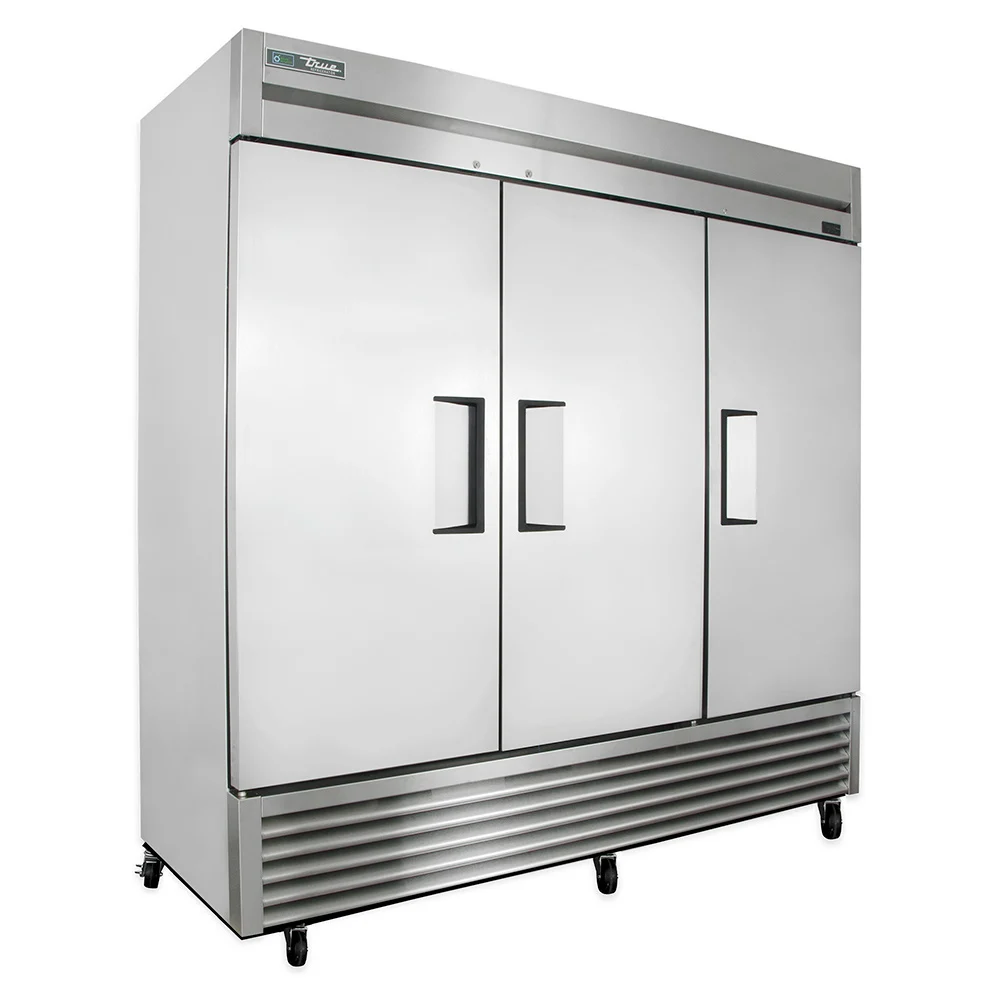

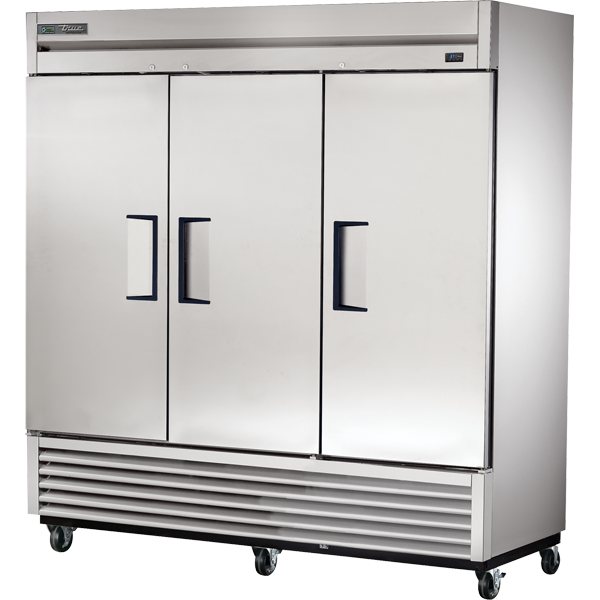

True T-72-HC 78 1/10″ Three Section Reach In Refrigerator 3 Left / Right Hinge Solid Doors 115v

Description

The True T-72-HC three-section reach-in refrigerator is engineered for high-volume commercial kitchens that demand consistent cooling, durability, and energy efficiency. Designed with a powerful refrigeration system and premium cabinet construction, this unit keeps ingredients fresh while standing up to daily foodservice use.

This commercial refrigerator maintains safe holding temperatures between 33°F and 38°F, supported by a high-performance compressor paired with oversized evaporator and condenser coils. A self-contained capillary tube system precisely regulates the flow of R290 hydrocarbon refrigerant, delivering fast temperature recovery while reducing energy consumption.

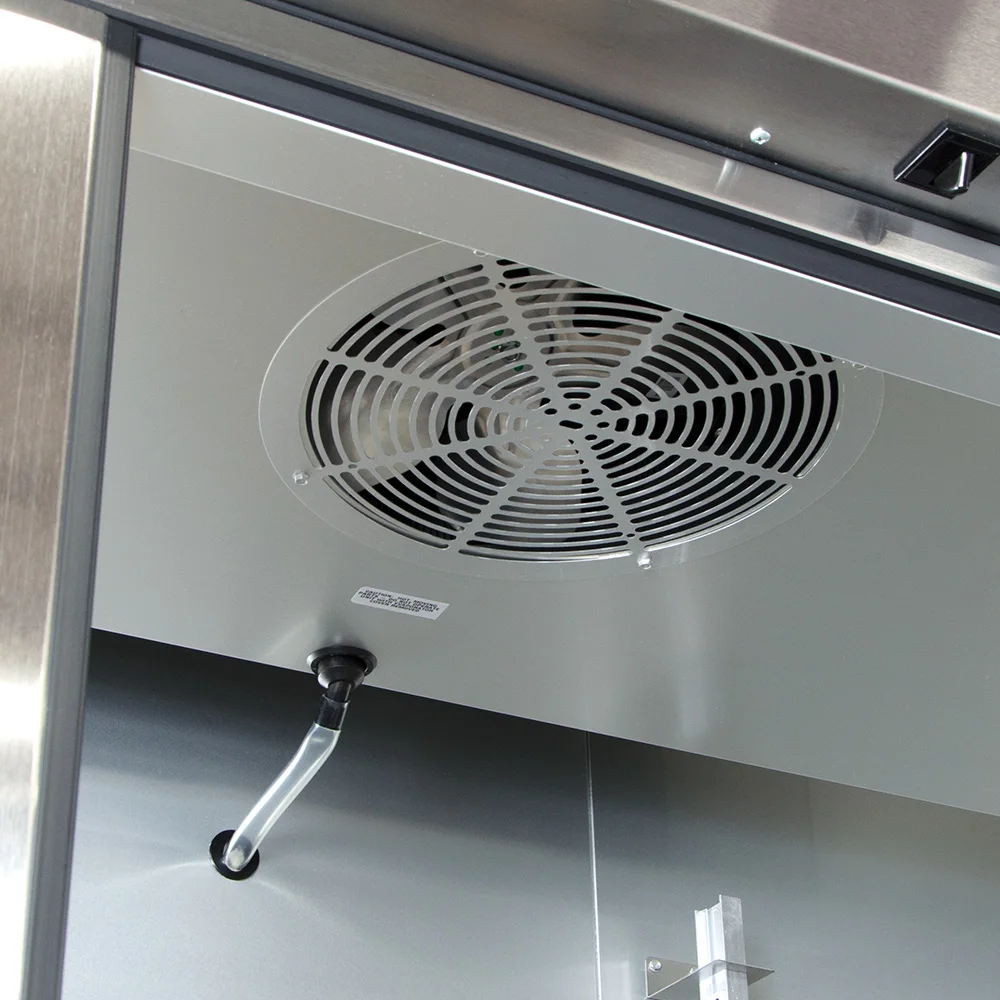

Cold air is circulated evenly throughout the cabinet by large evaporator fans driven by sealed, self-lubricating cast iron motors. To improve long-term efficiency, the compressor fan briefly reverses direction during startup, helping reduce dust and debris buildup on the condensing coil. This feature supports cleaner operation over time, while routine preventative maintenance helps ensure optimal performance.

Bottom-Mount Design for Serviceability & Efficiency

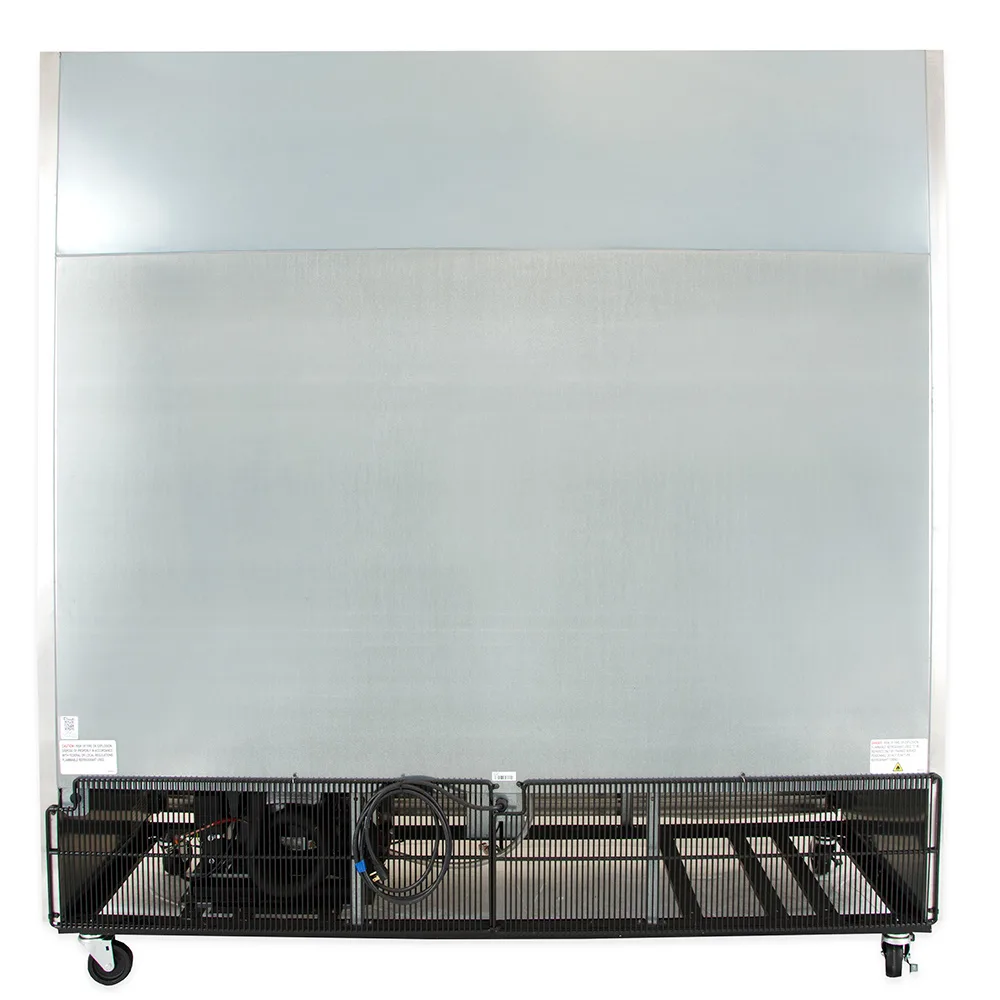

The bottom-mounted condensing unit places key components in a cooler, lower area of the kitchen, improving operating efficiency and simplifying access for cleaning and maintenance. The refrigerator is mounted on 4-inch stem casters, allowing staff to easily roll the unit away from the wall for floor cleaning, with locking front casters for stability during use.

Flexible Storage & Interior Visibility

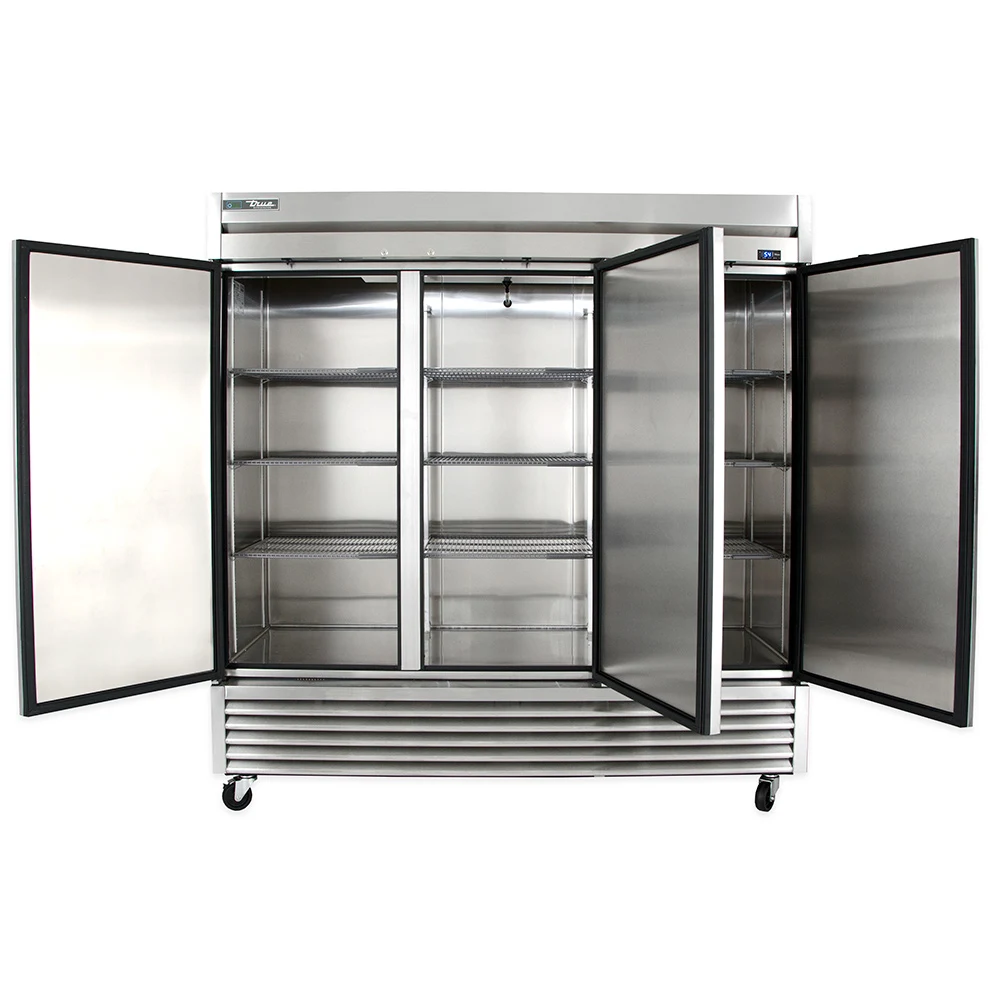

Inside, the T-72-HC includes nine gray PVC-coated wire shelves, each adjustable in ½-inch increments to accommodate various product sizes. Safety-shielded interior lighting enhances visibility while protecting stored items from breakage risks. An exterior digital temperature display allows quick temperature checks without opening the doors.

Heavy-Duty Doors & Cabinet Construction

The cabinet exterior features stainless steel fronts for durability and a professional appearance, while the top, back, and ends are finished in anodized aluminum for corrosion resistance. The interior is lined with clear-coated aluminum for easy cleaning, and the stainless steel floor with coved corners promotes sanitation.

The cabinet structure is insulated with foamed-in-place polyurethane insulation, enhancing structural strength and improving energy efficiency. A powder-coated steel frame rail adds protection against rust in demanding kitchen environments.

Each self-closing door is equipped with a 12-inch recessed handle secured with a sheet-metal interlock for long-term reliability. Magnetic door gaskets create a tight seal to reduce cold air loss and can be removed without tools for easy cleaning.

Key Features

• Maintains 33°F–38°F temperature range for safe food storage

• Self-contained capillary tube refrigeration system with R290 refrigerant

• High-capacity compressor with large condenser and evaporator coils

• Reverse-airflow compressor fan helps reduce coil debris buildup

• Even airflow provided by large evaporator fans with cast iron motors

• Bottom-mounted condensing unit for easy service access

• Mounted on 4″ locking stem casters for mobility and cleaning

• Includes 9 adjustable PVC-coated wire shelves

• Exterior digital temperature display

• Epoxy-coated evaporator for corrosion resistance

  Cabinet & Door Construction

  • Stainless steel front exterior

  • Anodized aluminum top, back, and ends

  • Clear-coated aluminum interior walls

  • Stainless steel interior floor with coved corners

  • Foamed-in-place polyurethane insulation

  • Powder-coated steel frame rail

  • Self-closing doors with recessed handles

  • Tool-free removable magnetic door gaskets

    Electrical & Dimensions

    • Shelves: 24 1⁄8″ W × 22 3⁄8″ D

    • Overall Size: 78 1⁄8″ W × 29 1⁄2″ D × 83 5⁄16″ H

    • Amps: 6.9 A

    • Compressor: 3/4 HP

    • Electrical: 115V / 60Hz / 1 Phase

    • Plug: NEMA 5-15P with 9-ft power cord
