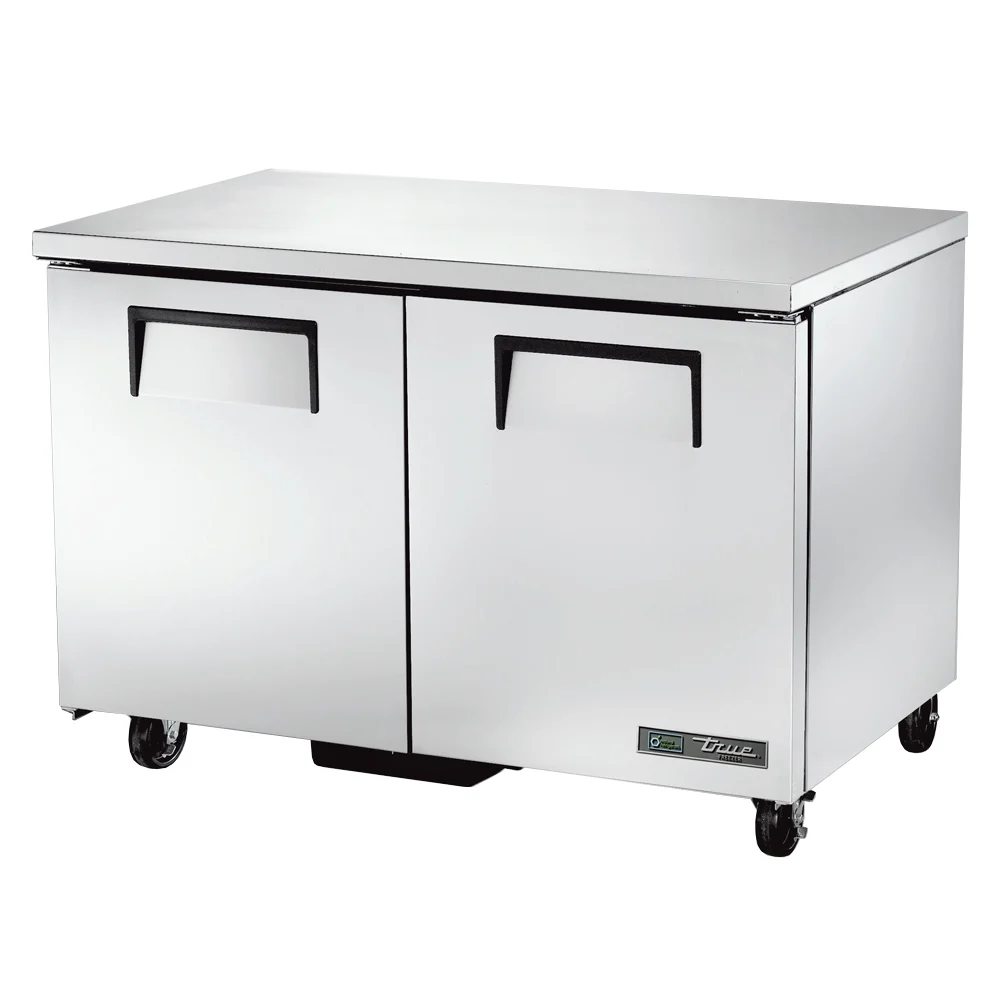

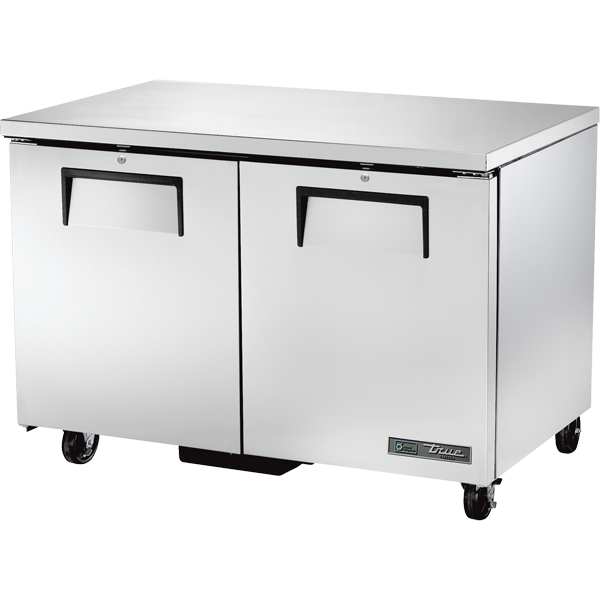

True TUC-48F-HC 48 1/2″ W Undercounter Freezer w 2 Sections & 2 Doors 115v

Description

The True TUC-48F-HC undercounter freezer is designed to deliver dependable frozen storage while maximizing efficiency in space-constrained commercial kitchens. Engineered with a self-contained capillary tube refrigeration system, this unit utilizes environmentally friendly R290 hydrocarbon refrigerant to consistently maintain temperatures at -10°F, making it ideal for frozen foods, ice cream, and prep-line ingredients.

To ensure uniform cooling, high-efficiency condenser and evaporator fan motors circulate air evenly throughout the cabinet while minimizing heat production and energy consumption. The epoxy-coated evaporator provides added protection against corrosion, extending the life of the refrigeration system. For simplified servicing, the rear-mounted condensing unit slides out, allowing fast access for cleaning and maintenance.

This freezer also features a self-cleaning condenser system that improves long-term performance. Each time the compressor cycles on, the condenser fan motor briefly reverses airflow to help remove dust and debris from the condensing coil. This process supports consistent cooling, reduces strain on the system, and helps lower overall energy usage when paired with routine preventive maintenance.

Constructed for heavy commercial use, the exterior includes stainless steel on the front, top, and ends, paired with a GalFan-coated steel back for added durability. The interior is lined with clear-coated aluminum, while the stainless steel floor with coved corners prevents spills from collecting and simplifies cleaning. Foamed-in-place polyurethane insulation enhances structural strength and helps retain cold air inside the cabinet.

Storage flexibility is provided by four PVC-coated wire shelves, which can be adjusted to accommodate a variety of frozen products. The stainless steel doors are equipped with 12-inch recessed handles and a 90-degree stay-open feature, allowing efficient loading during busy service hours. Magnetic door gaskets create a tight seal to prevent temperature loss, and casters make it easy to move the unit for cleaning beneath.

---

Product Specifications

Refrigeration System

• Self-contained capillary tube system

• Eco-friendly R290 hydrocarbon refrigerant

• Operating temperature: -10°F

• Epoxy-coated evaporator resists corrosion

• Energy-efficient condenser and evaporator fan motors

• Automatic 20-second reverse fan cycle helps keep the condensing coil clean

• Rear-accessible, slide-out condensing unit

Construction

• Stainless steel front, top, and ends

• GalFan-coated steel back panel

• Clear-coated aluminum interior liner

• Stainless steel floor with coved corners

• Foamed-in-place polyurethane insulation

Shelving & Storage

• (4) PVC-coated wire shelves

• Adjustable shelf configuration

Dimensions & Utilities

• Shelf size: 21 9⁄16 in. W x 16 in. D

• Overall dimensions: 48 5⁄16 in. W x 31 1⁄16 in. D x 35 15⁄16 in. H

• Electrical: 115V / 60Hz / 1 Phase

• Amperage: 3.2 A

• Horsepower: 1/2 HP

• Power cord: 7 ft. with NEMA 5-15P plug
