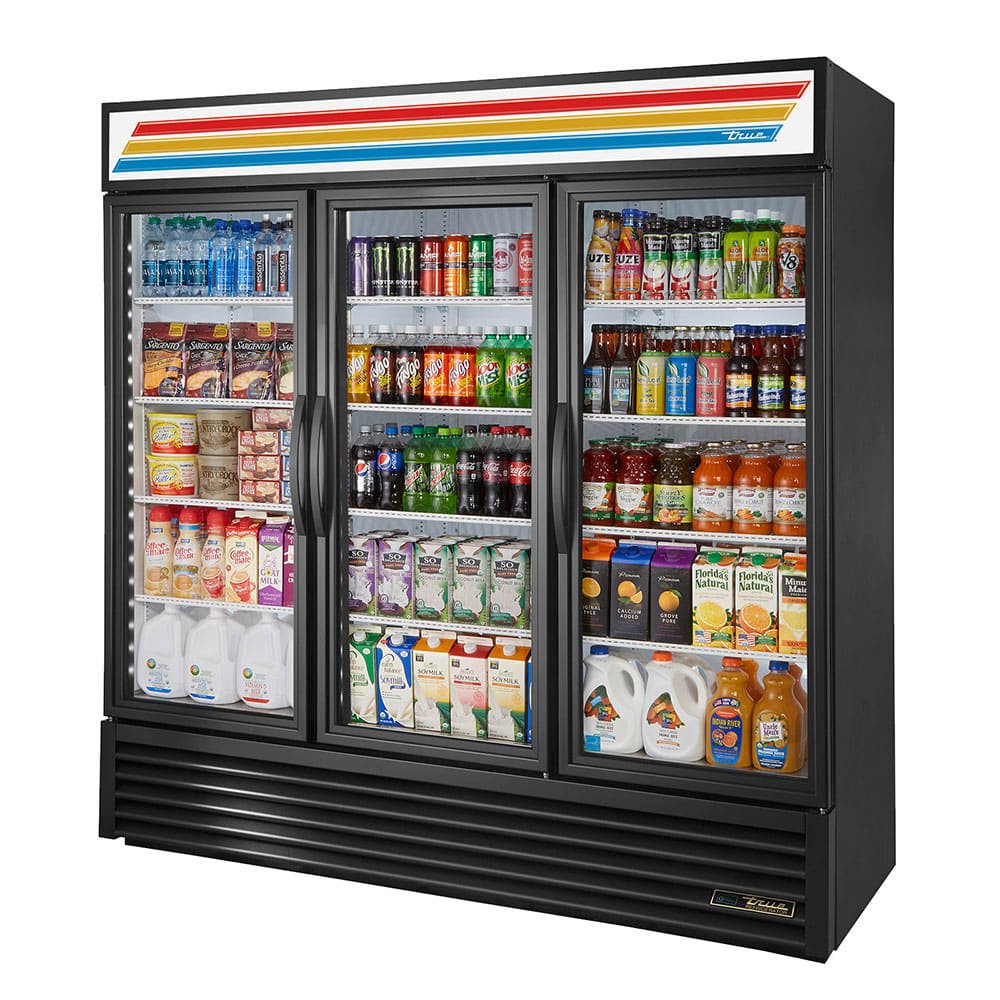

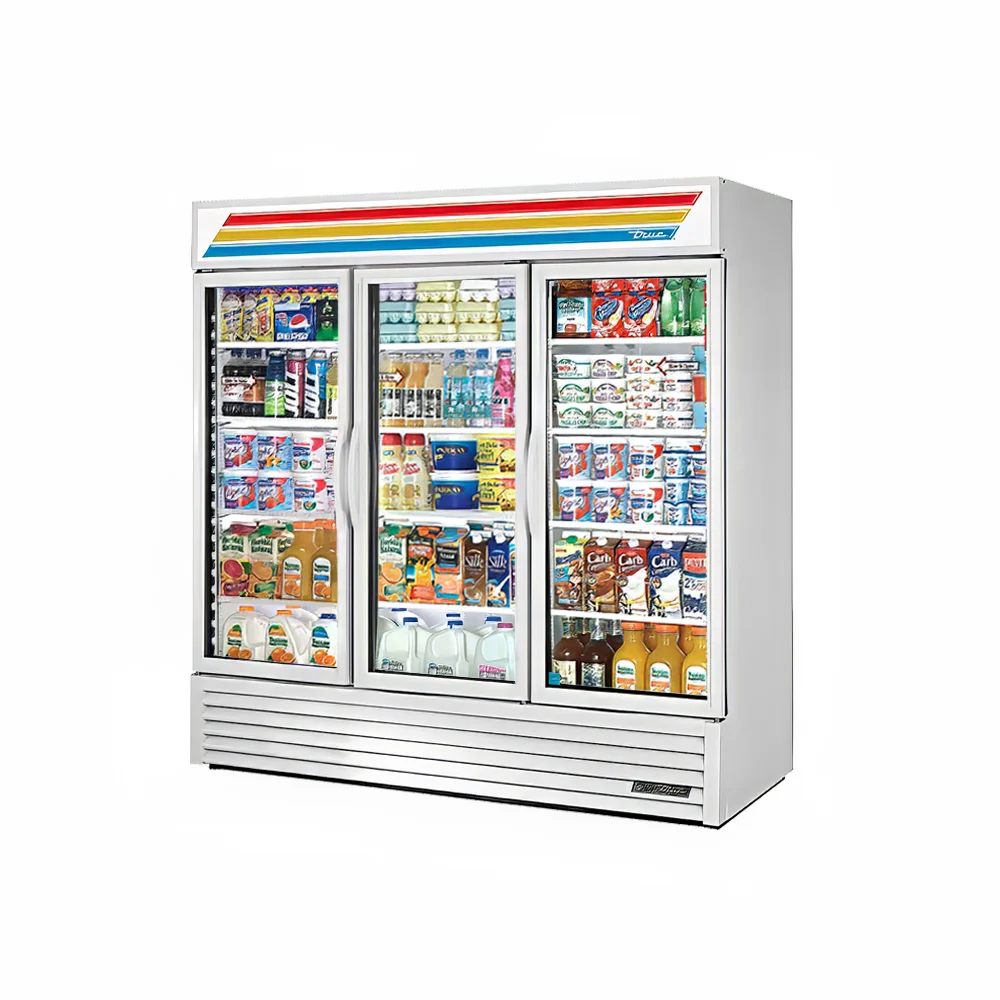

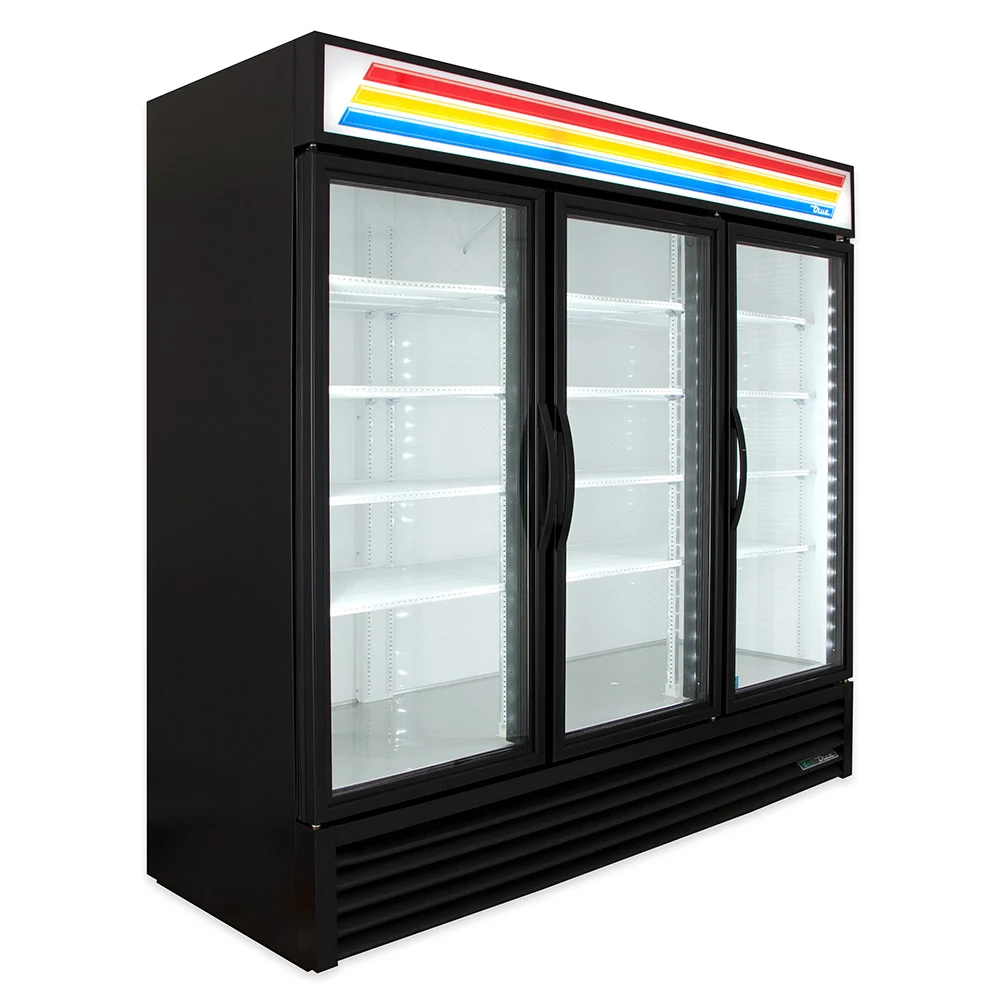

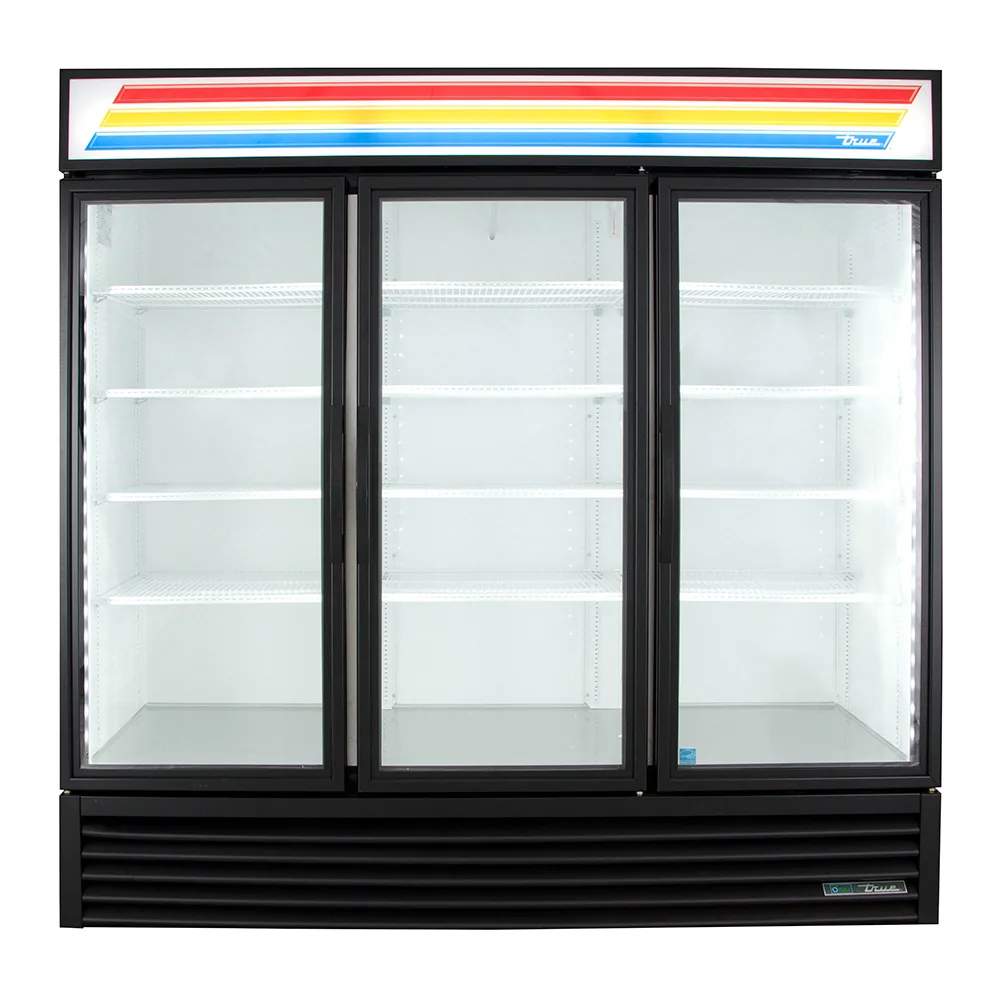

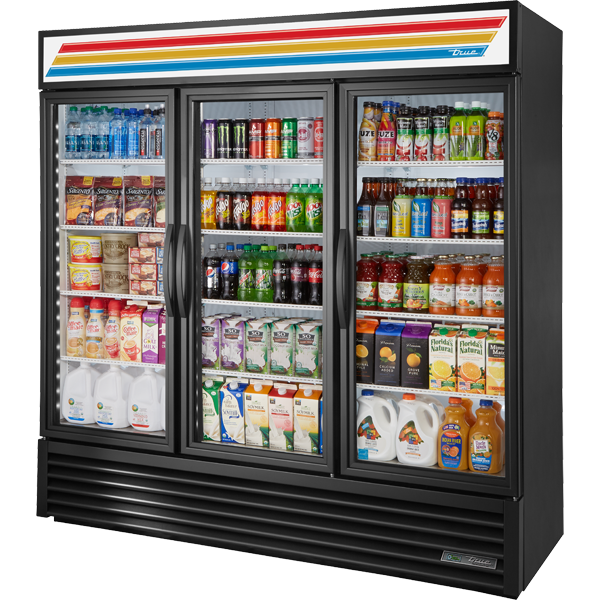

TTrue GDM-72-HC~TSL01 78 1/8″ GDM Series Three Section Glass Door Merchandiser 3 Left & Right Hinge Doors 115v

Description

The True GDM-72-HC~TSL01 three-section glass door merchandiser is engineered for high-capacity refrigerated display in convenience stores, grocery stores, cafeterias, and foodservice operations. Designed to safely hold packaged foods and bottled beverages, this merchandiser maintains consistent temperatures between 33°F and 38°F using an efficient capillary tube refrigeration system with eco-friendly R290 hydrocarbon refrigerant. Foamed-in-place polyurethane insulation combined with low-E, double-pane glass doors helps retain cold air and reduce energy loss.

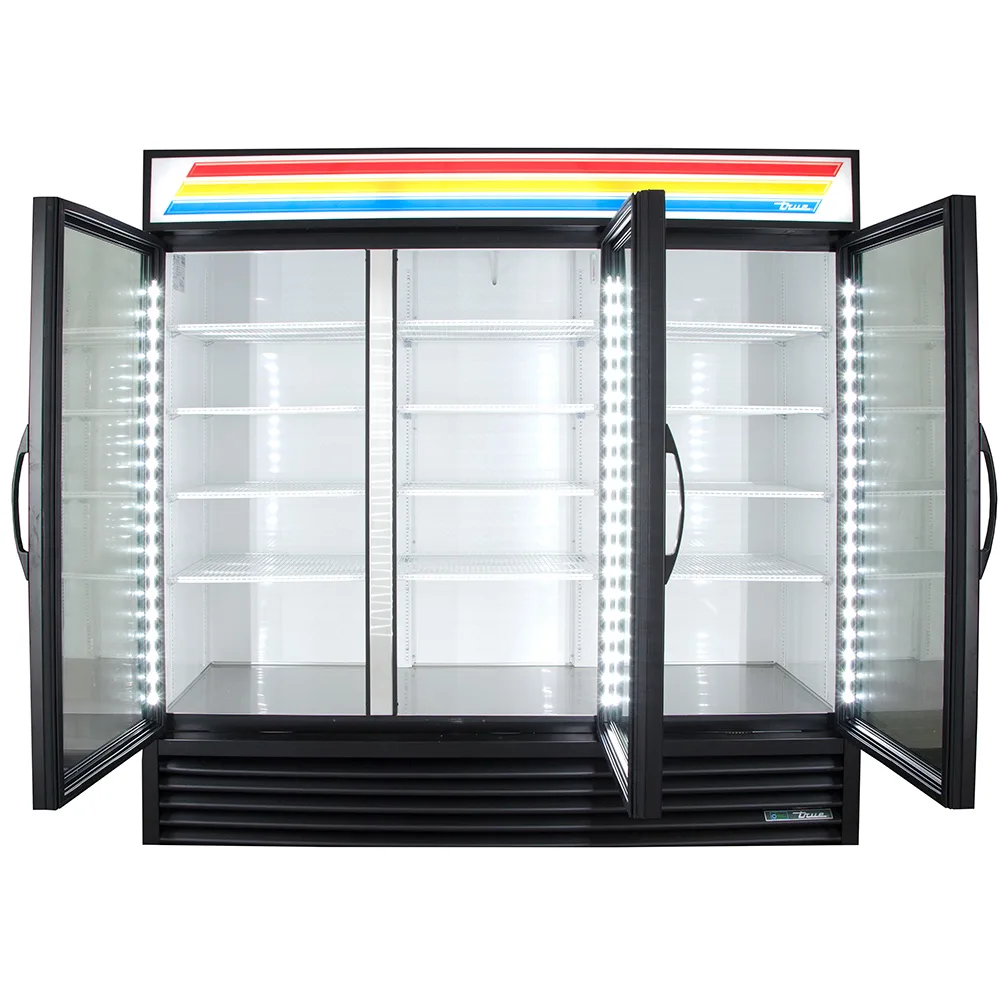

This unit enhances product presentation with bright LED interior lighting and full-height glass doors that allow customers to easily view displayed items, increasing impulse sales. The self-closing swing doors support fast temperature recovery, while removable magnetic door gaskets create a tight seal and simplify cleaning. Inside, twelve adjustable PVC-coated wire shelves provide flexible storage options for a wide range of product sizes.

To improve serviceability and efficiency, the refrigeration system is bottom mounted, placing key components in a cooler, more accessible location for maintenance. This design also raises the lowest shelf to a comfortable viewing height, eliminating the need for customers to stoop. The evaporator and condenser fan motors move air evenly throughout the cabinet while limiting heat output for lower energy consumption.

For long-term performance, the condenser fan motor features a reverse-cycle self-cleaning function that briefly runs at startup to remove dust and debris from the condensing coil. This helps maintain proper airflow, supports consistent cooling, and extends equipment lifespan when used alongside routine preventive maintenance.

The merchandiser’s black powder-coated steel exterior resists chipping and peeling, while corrosion-resistant internal components and a clean-out drain make daily sanitation fast and efficient.

---

Key Features & Specifications

Display & Storage

• Three-section refrigerated merchandiser

• (12) PVC-coated wire shelves, adjustable in 1/2″ increments

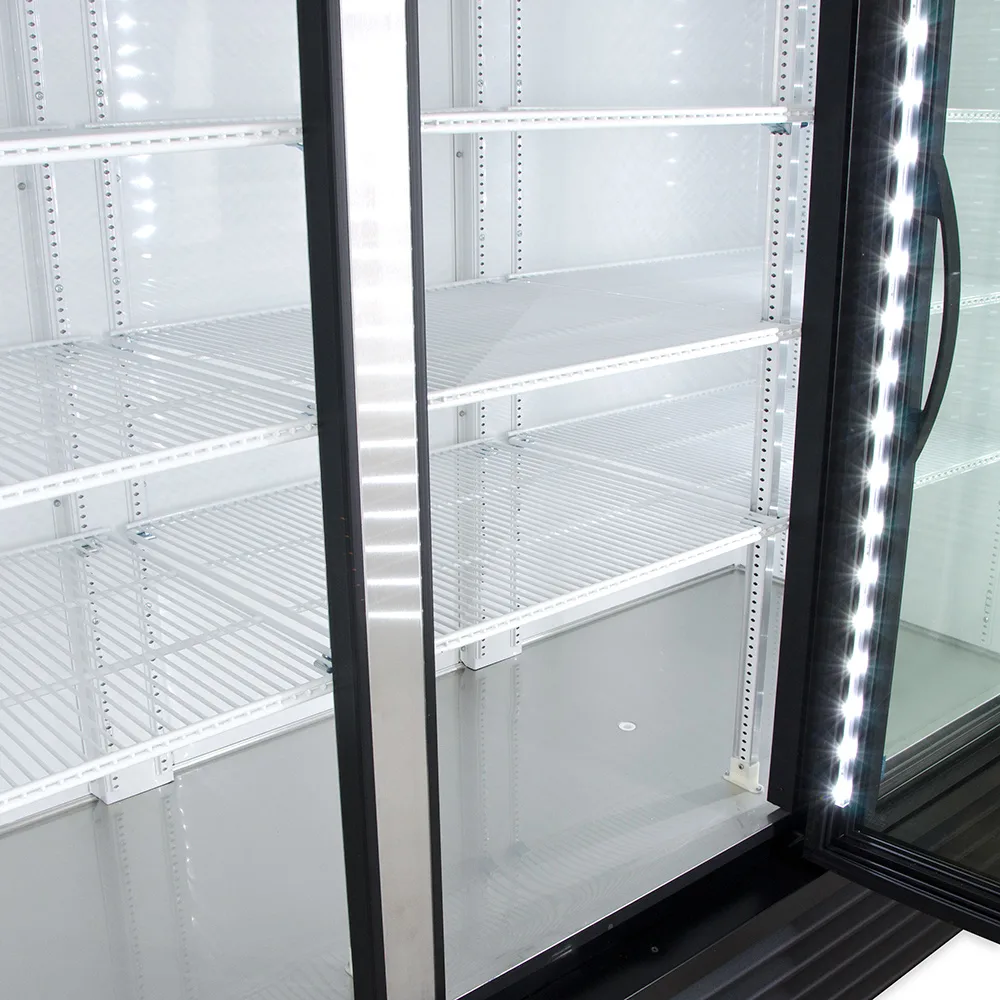

• LED interior lighting for enhanced product visibility

• Raised bottom shelf improves customer access

Doors & Access

• (3) Double-pane insulated glass doors

• Self-closing swing doors for temperature recovery

• 12″ door handles

• Removable magnetic door gaskets

Cabinet Construction

• Durable black powder-coated steel exterior

• Foamed-in-place high-density polyurethane insulation

• Clean-out drain for easy interior cleaning

• Corrosion-resistant evaporator and powder-coated frame rail

Refrigeration System

• Temperature range: 33–38°F

• Refrigerant: R290 Hydrocarbon

• Capillary tube refrigeration system

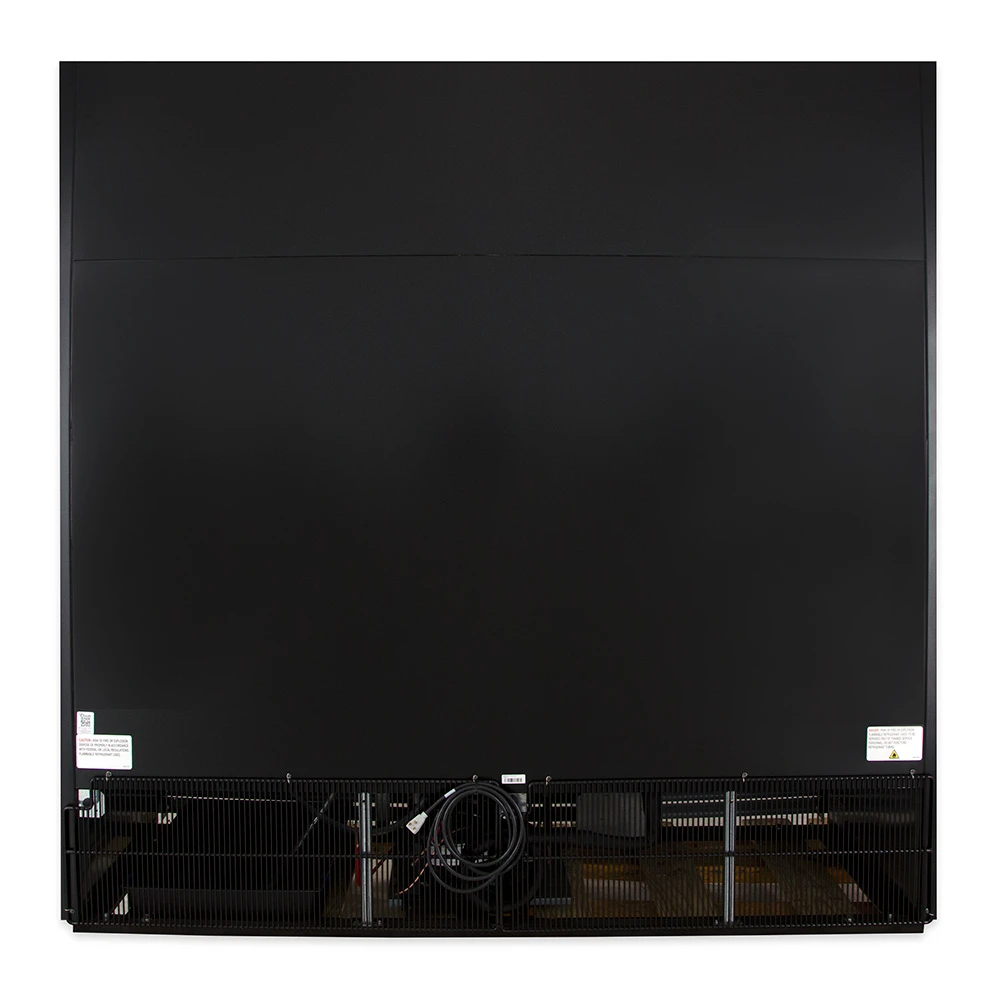

• Bottom-mounted condensing unit for easy service access

• Evaporator and condenser fan motors for even airflow

• Reverse-cycle condenser fan helps keep coil clean

Dimensions & Electrical

• Overall Size: 78 1/8″ W × 31 1/4″ D × 78 5/8″ H

• Shelf Size: 24 1/8″ W × 20 3/4″ D

• Electrical: 115V / 60Hz / 1 Phase

• Amperage: 9.3 A

• Horsepower: 1/2 HP

• Power Cord: 9 ft with NEMA 5-15P plug
