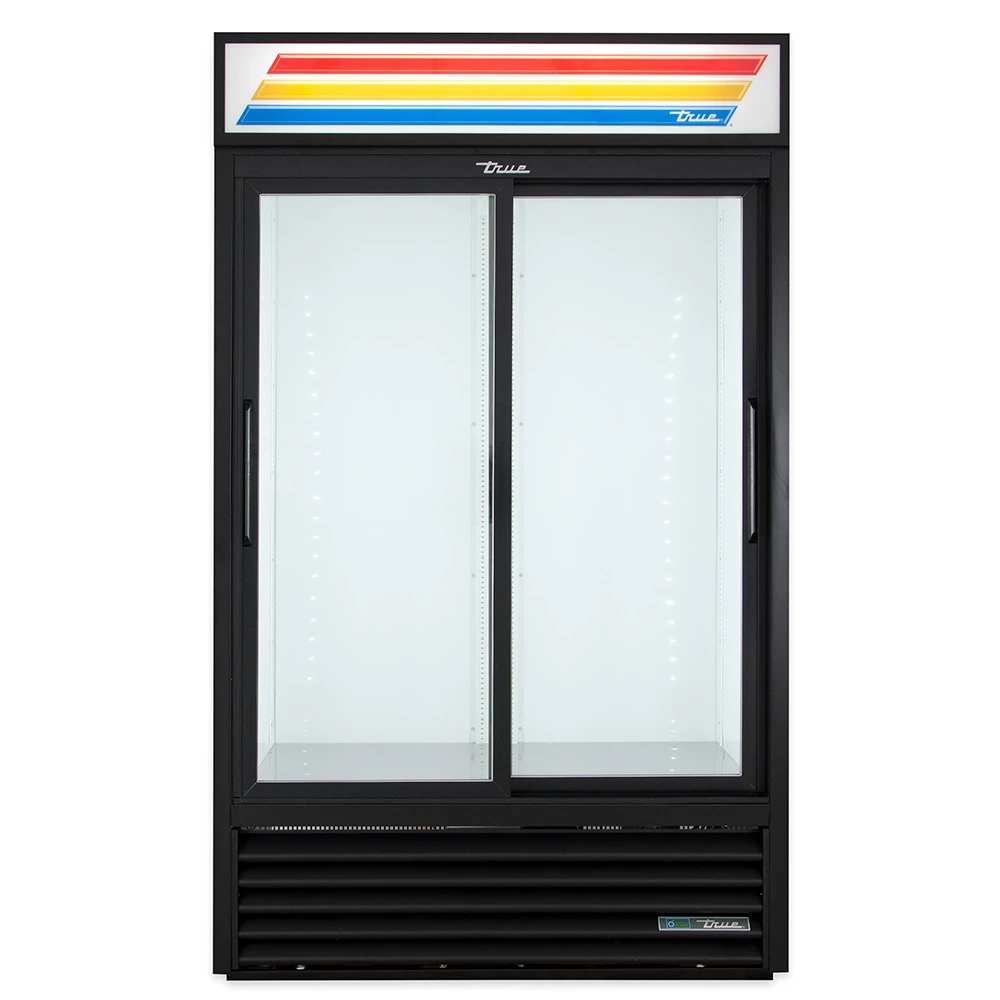

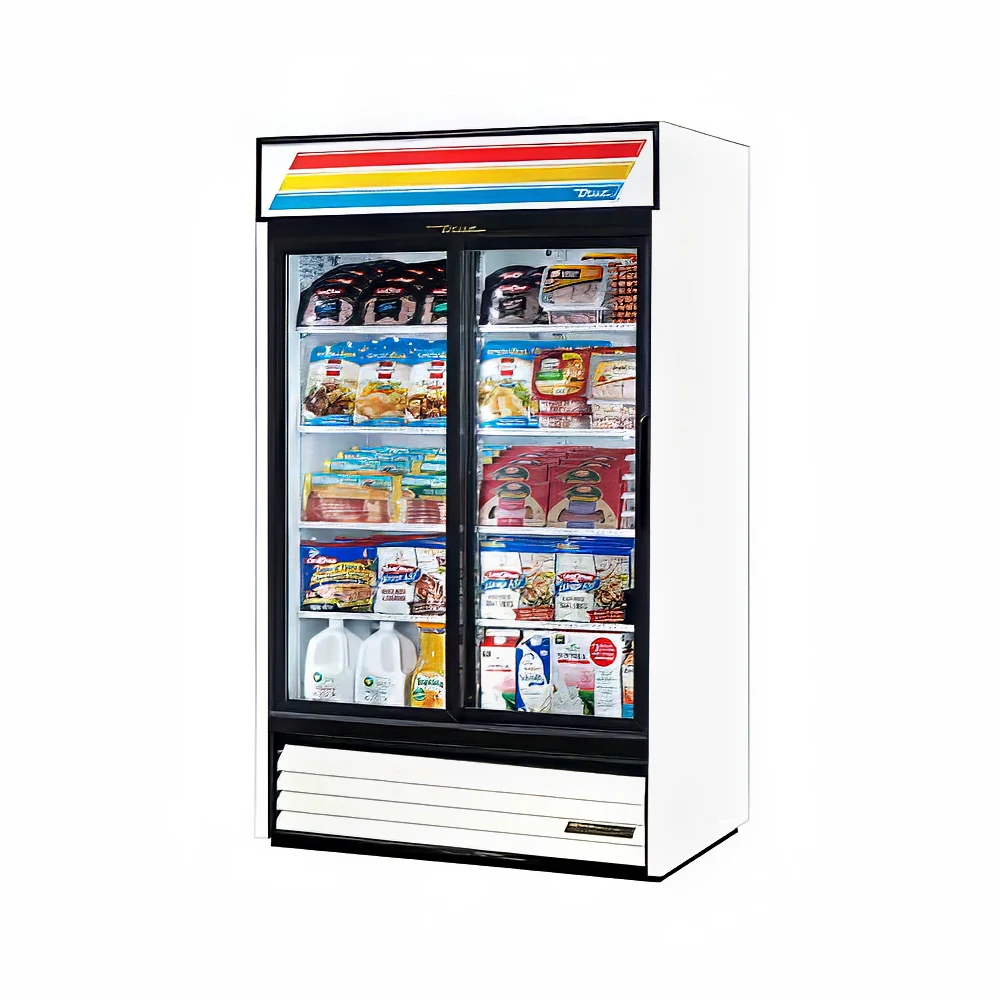

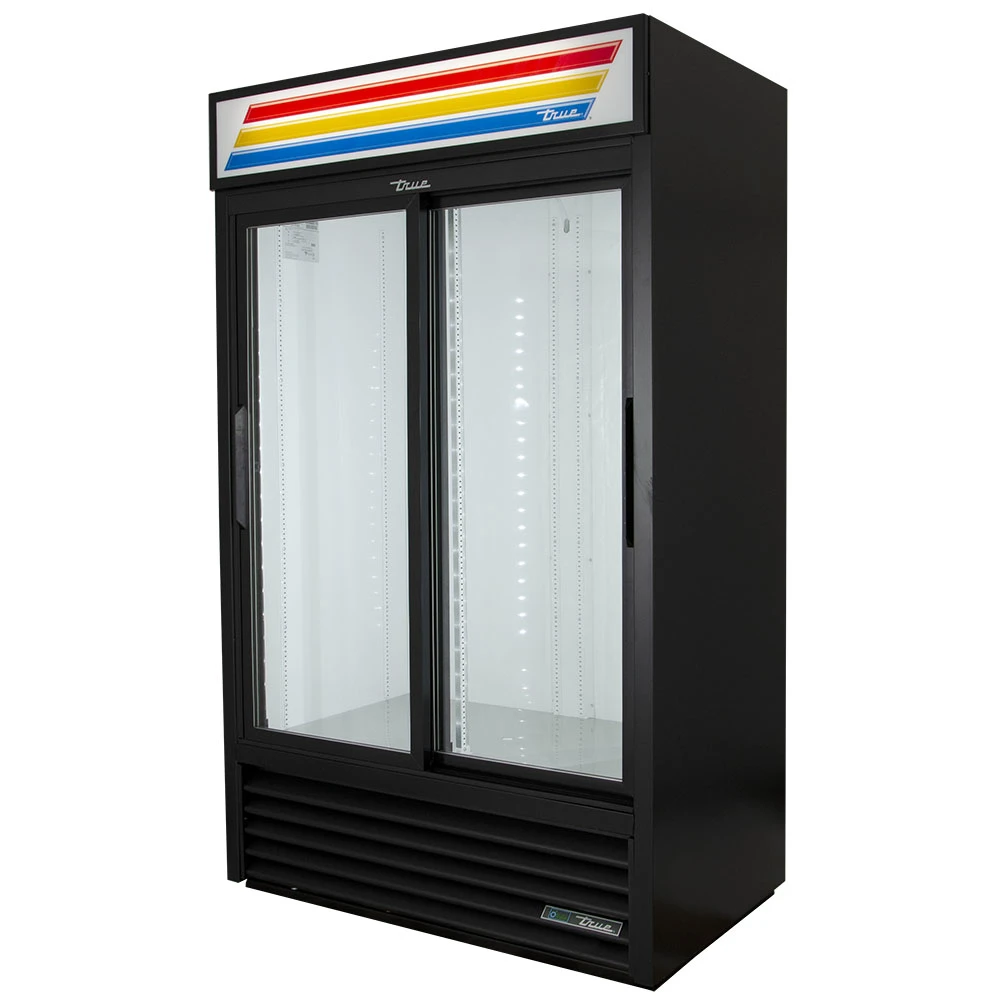

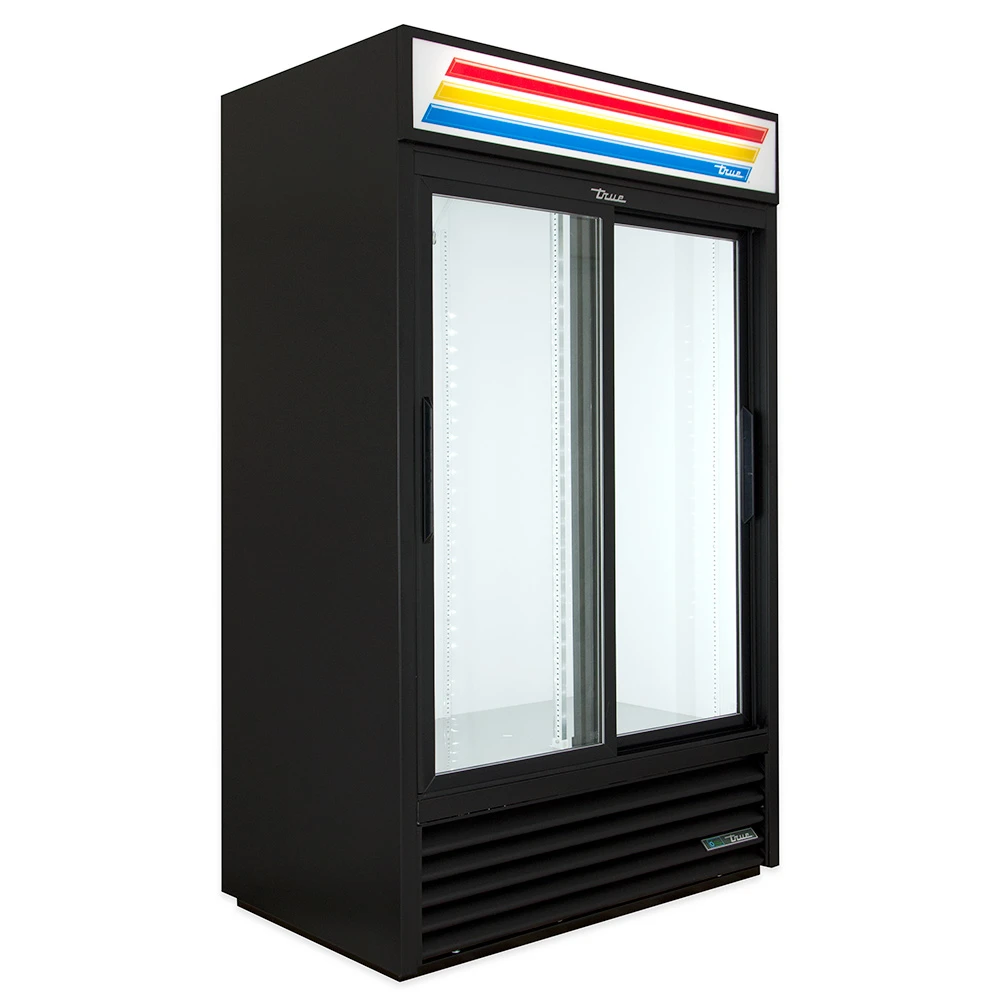

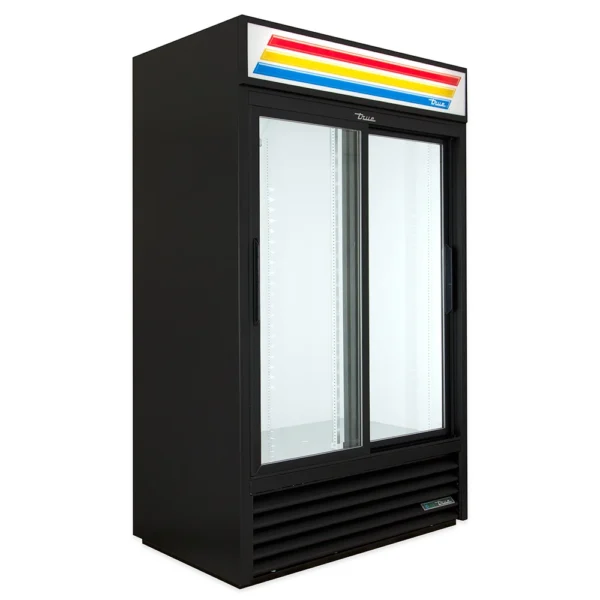

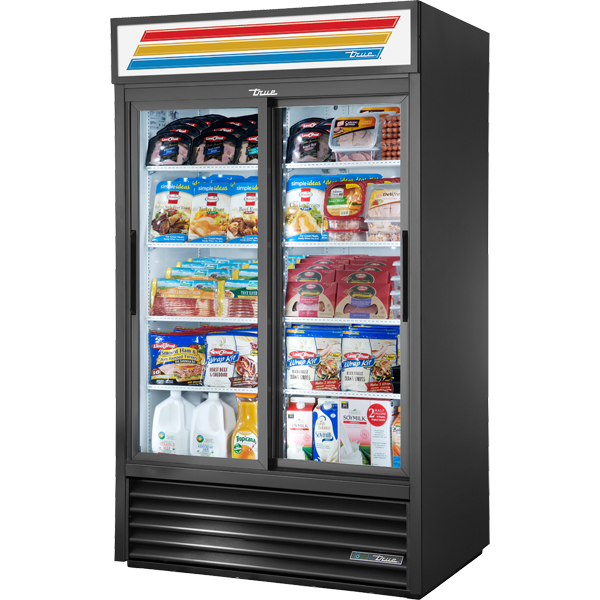

True GDM-41-HC-LD 47 1/8″ GDM Series Two Section Glass Door Merchandiser 2 Sliding Doors 115v

Description

The True GDM-41-HC-LD glass door merchandiser is designed for reliable refrigerated display in convenience stores, supermarkets, and foodservice operations. This two-section unit maintains consistent holding temperatures between 33°F and 38°F using an energy-efficient refrigeration system powered by eco-friendly R290 refrigerant. High-performance evaporator and condenser fan motors circulate air evenly throughout the cabinet while limiting heat output to reduce energy usage.

For simplified upkeep, the refrigeration system is bottom mounted, making service access easier while creating a raised bottom shelf that improves product visibility. The evaporator is protected with an epoxy coating to resist corrosion and extend equipment life. To support long-term efficiency, the condenser fan automatically reverses for a short cycle at startup, clearing dust and debris from the condensing coil. Routine preventive maintenance is still recommended to ensure optimal operation.

This merchandiser features a durable white powder-coated steel exterior paired with a bright white aluminum interior liner that resists chipping and peeling. The stainless steel floor with built-in drain simplifies cleanup, while foamed-in-place polyurethane insulation helps retain cold air and adds cabinet strength. Two double-pane, thermally insulated glass doors allow clear product visibility while reducing temperature loss. Inside, eight adjustable PVC-coated wire shelves accommodate a wide range of packaged foods and beverages, and LED interior lighting enhances product presentation for merchandising environments.

Key Features & Specifications

Storage & Display

• (8) PVC-coated wire shelves, adjustable in 1/2″ increments

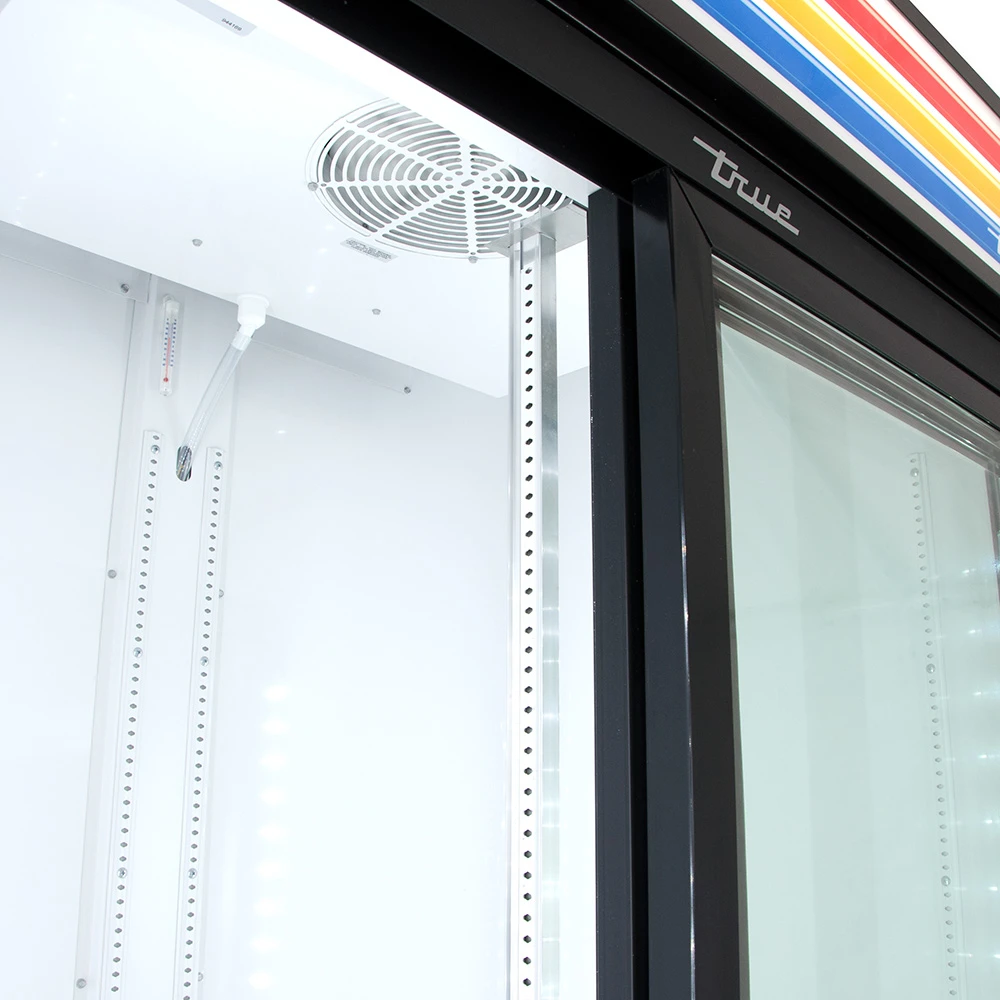

• LED interior lighting for enhanced product visibility

• Raised bottom shelf improves product presentation

• Illuminated exterior sign panel for branding and promotions

Doors & Access

• (2) Double-pane insulated glass doors

• Self-closing design to maintain cabinet temperatures

• 12″ door handles for easy opening

Construction

• White powder-coated steel exterior

• White aluminum interior liner

• Stainless steel floor with integrated drain

• Black powder-coated steel frame rail

• Foamed-in-place polyurethane insulation

• Adjustable leg levelers for uneven floors

Refrigeration System

• Temperature range: 33–38°F

• Refrigerant: R290 Hydrocarbon

• Balanced, high-capacity refrigeration system

• Epoxy-coated evaporator

• Reverse-cycle condenser fan helps keep coil clean

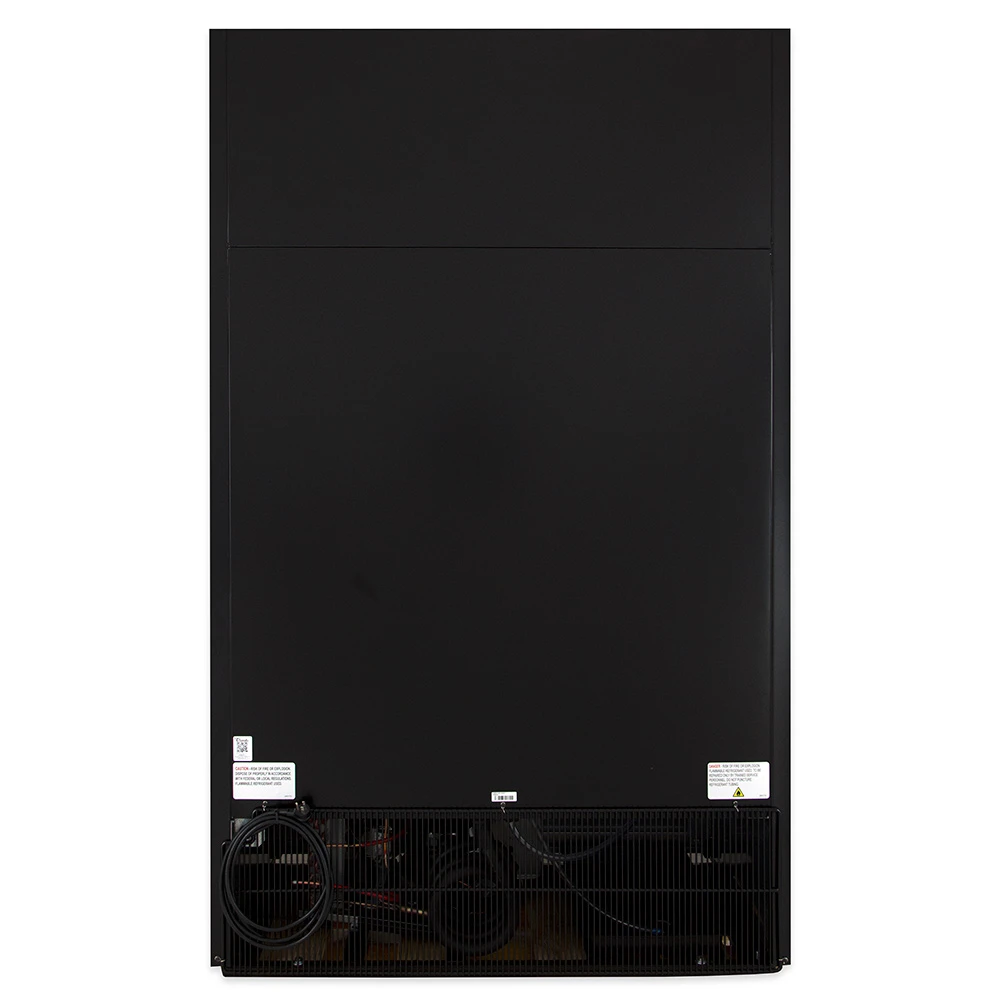

• Bottom-mounted condensing unit for easy service access

Dimensions & Electrical

• Overall Size: 47 1/8″ W × 30″ D × 78 5/8″ H

• Shelf Size: 20 7/8″ W × 20 9/16″ D

• Electrical: 115V / 60Hz / 1 Phase

• Amperage: 6.5 A

• Horsepower: 1/2 HP

• Power Cord: 10 ft with NEMA 5-15P plug
