Description

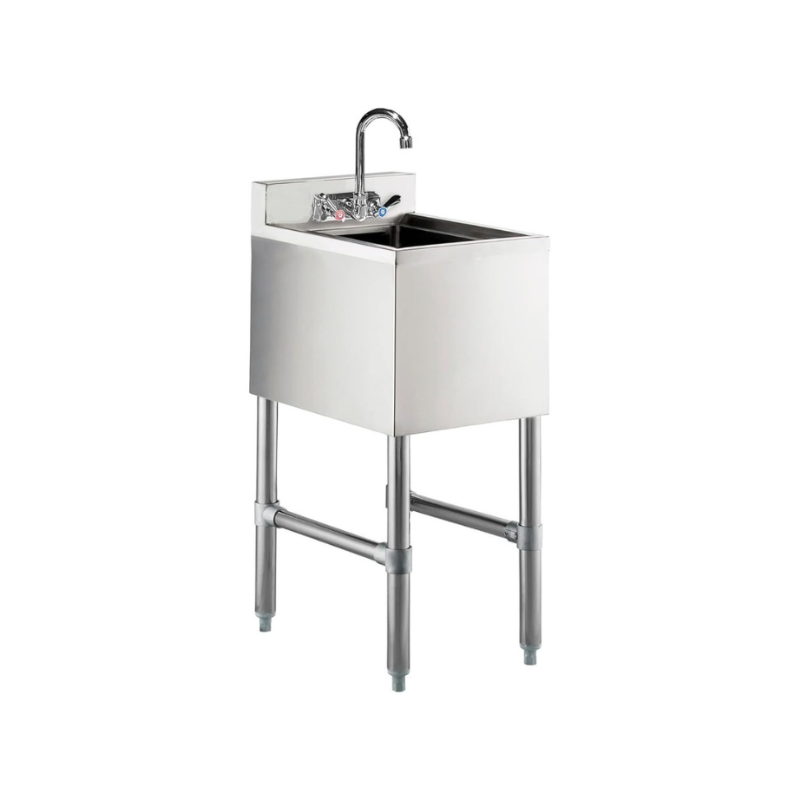

The BAR-S1C-1014-F is a one compartment underbar sink, 12 in. wide and 19 in. front to back, with a 10 x 14 x 9.5 in. deep bowl. It comes with a 10 in. swing faucet and drain, and its 32.75 in. working height fits under a standard bar top.
Features
- 16 gauge stainless steel bowl and body
- 10 x 14 x 9.5 in. deep bowl
- 10 in. swing faucet included
- 3.5 in. basket strainer and 1.5 in. IPS drain connection
- Backsplash and rolled edges
- Galvanized legs with adjustable bullet feet
- 32.75 in. working height
- NSF certified

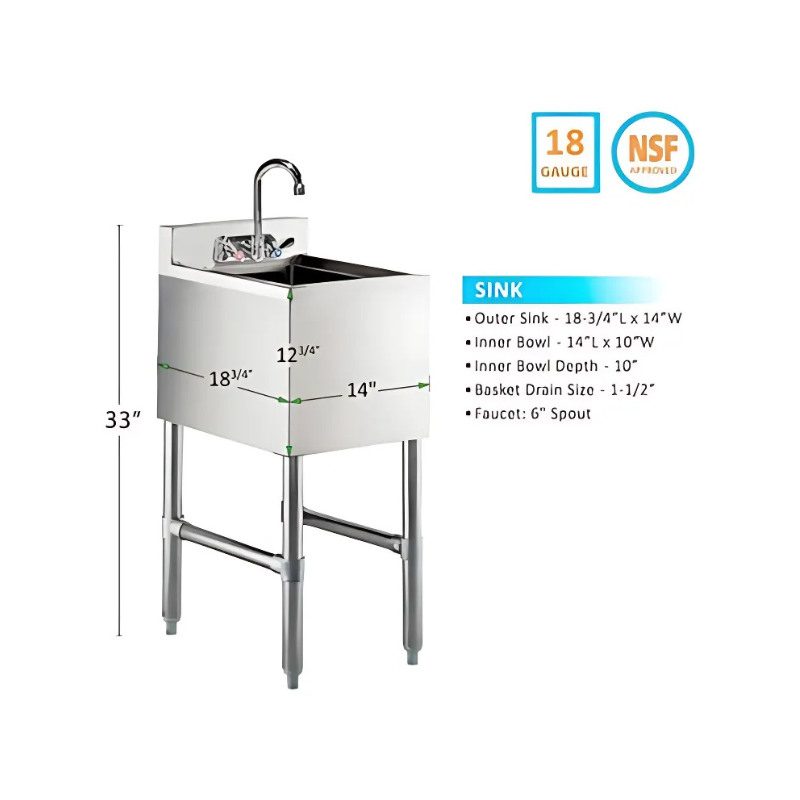

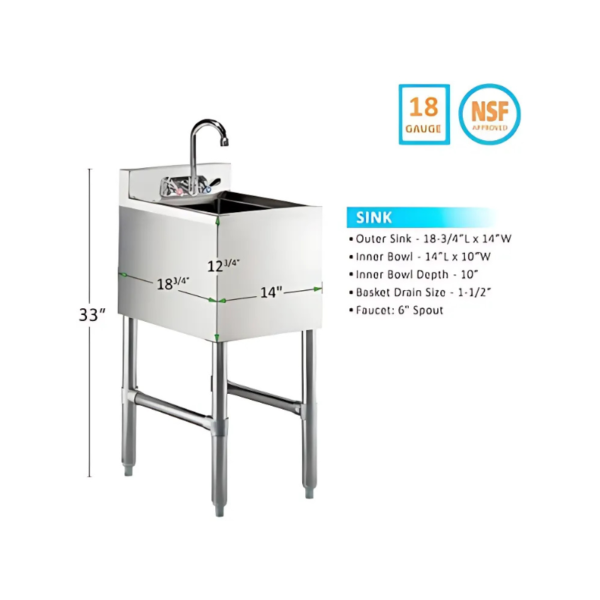

Specifications
| Brand | Express KitchQuip |
|---|---|
| Model | BAR-S1C-1014-F |
| Size | 12 W x 19 D in. |
| Bowl | 10 x 14 x 9.5 in. |
| Working height | 32.75 in. |
| Faucet | 10 in. swing, included |
| Drain | 3.5 in. strainer, 1.5 in. IPS |
| Approval | NSF |
Before you order
- Measure the opening under your bar, including height.
- Plan hot and cold water and a drain. A plumber usually makes the final connections.
- A bar sink does not replace a hand sink. Your local health department has the final say on sink requirements, so check with them before you order.
Compare similar models
| Model | Size | Bowl |
|---|---|---|
| BAR-S1C-1014-F (this page) | 12 W x 19 D in. | 10 x 14 x 9.5 in. |
| S1C-101410-L-F | 24 W x 19 D in. | 10 x 14 in. |
| S1C-101410-R-F | 24 W x 19 D in. | 10 x 14 x 9.5 in. |
| FUBS-1814 | 12 W x 19 D x 32.75 H in. | 14 x 10 x 10 in. |
| 26″ Two Compartment Under Bar Sink with Faucet Stainless | 26 x 18 in. | See page |
| Two Compartment Under Bar Sink with Faucet 24 x 18 | 24 x 18 in. | See page |
Common questions
Will it fit under my bar?
It is 12 in. wide, 19 in. front to back and 32.75 in. high at the work surface. Measure the opening under the bar.
Can a bar sink be my hand sink?
No. Most health codes require a separate hand sink. Your local health department has the final say, so check with them before you order.
What comes with it?
A 10 in. swing faucet, 3.5 in. basket strainer and drain.
Ordering from Express KitchQuip
Freight with liftgate delivery to the 48 contiguous states and DC is part of the price, so nothing is added at checkout. As a non-powered item, the BAR-S1C-1014-F has a 14-day return window from delivery. Questions before you order? Call us.
See all bar sinks and bar equipment.
Common Questions
Is shipping free, and is liftgate delivery included?
Yes. Shipping is free to the lower 48 states and DC, with nothing added at checkout. Larger items ship by freight truck with liftgate delivery included, and the carrier calls ahead to schedule. Smaller items ship by parcel. We do not ship to Alaska, Hawaii or Puerto Rico.
Do I need a plumber?
Yes. A plumber should connect the water supply and drain. Check the title and specifications to see whether a faucet and drain are included. Compatible faucets and drains are shown under "Complete your setup".
How fast will it ship?
The shipping time is shown in the badge next to the price. Once your order ships you get an email with tracking. Freight carriers call to set up a delivery window.
Can I pick it up in New Jersey?
Many stainless steel items can be picked up at our Newark, NJ warehouse (250 Passaic St), Monday to Friday, 9:30am to 5pm, by appointment. Please call 877-558-2253 before you come so we can confirm this item is ready for pickup.
Reviews
There are no reviews yet.
